To Remove:
- Clean the transmission exterior

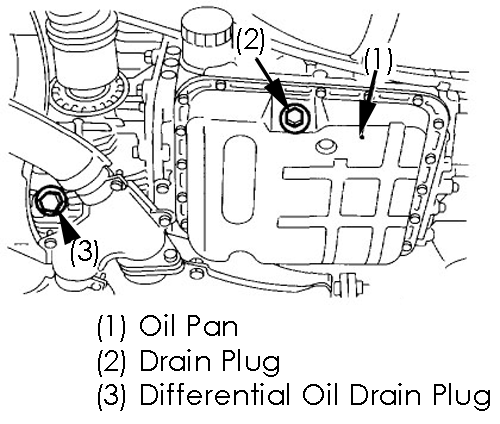

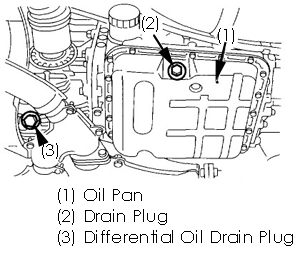

- Drain the ATF completely
- Replace the gasket with a new one, and then tighten the ATF drain plug
- Torque specification: 25 Nm (18.1 ft. lbs.)
- Remove the following
- Rear exhaust pipe and muffler
- Heat shield cover
- Propeller shaft
- Oil seal using the (ST 398527700 PULLER ASSY)
To Install:
- Install the following
- Oil seal using the ST. ST 498057300 INSTALLER
- Propeller shaft
- Heat shield cover
- Rear exhaust pipe and muffler
- Check the ATF level and fill
