Suzuki Vitara (LY) 2016-2017 · Service Manual M16A ยท Schematic and Routing Diagram

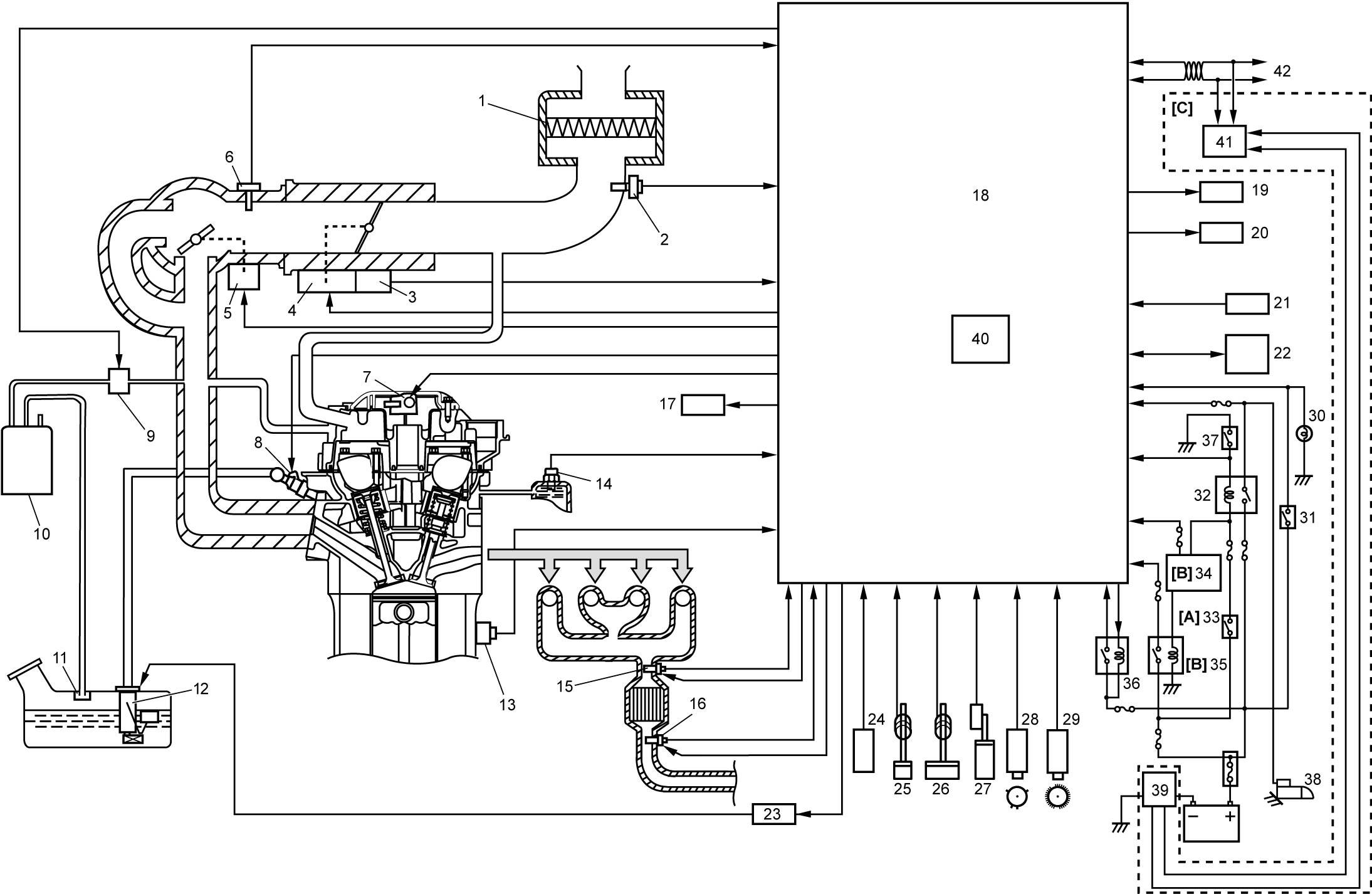

Engine and Emission Control System Diagram

Precautions: General safety (00)

[A]: Ignition switch model 13. Knock sensor 28. CMP sensor
[B]: Keyless push start model 14. ECT sensor 29. CKP sensor
[C]: ENG A-STOP model 15. HO2S-1 30. Brake light
1. Air cleaner 16. HO2S-2 31. Brake light switch
2. IAT sensor 17. OCV 32. Starting motor control relay
3. TP sensor 18. ECM 33. Ignition switch
4. Throttle actuator 19. Radiator cooling fan relay No.1, 2 and 3 34. Keyless start control module
5. IMT valve actuator 20. A/C compressor relay (A/C model) 35. IG1 relay
6. MAP sensor 21. A/C refrigerant pressure sensor (A/C model) 36. Main relay
7. Ignition coil assembly 22. Generator 37. CPP No.1 switch (M/T model) (if equipped) or transmission range sensor (A/T model)
8. Fuel injector 23. Fuel pomp relay 38. Starting motor
9. EVAP canister purge valve 24. Cruise control switch (if equipped) 39. Electric load current sensor
10. EVAP canister 25. CPP No.2 switch (M/T model) 40. Barometric pressure sensor
11. Fuel cut valve 26. Brake switch 41. ENG A-STOP control module
12. Fuel pump (with pressure regulator) 27. APP sensor 42. Control modules and sensors connected by CAN
