Suzuki Vitara (LY) 2016-2017 · Service Manual M16A · Schematic and Routing Diagram

Contents › 1A Engine General Information and Diagnosis › M16A › Schematic and Routing Diagram

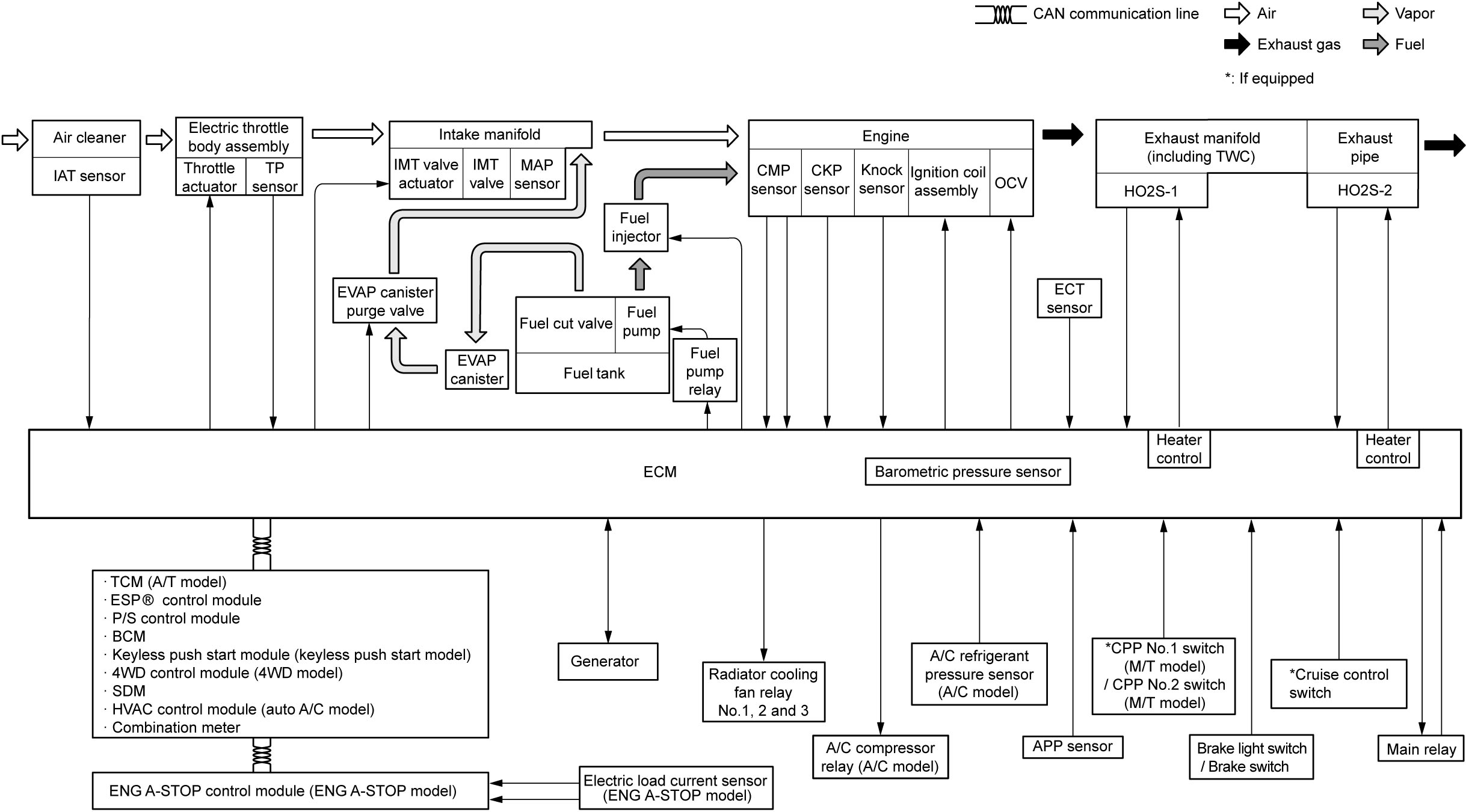

Engine and Emission Control System Flow Diagram

Precautions: General safety (00)
