DTC P0107 / P0108
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P0107: Manifold Absolute Pressure / Barometric Pressure Circuit Low Output voltage of MAP sensor signal circuit is lower than specified value for specified time. (3 D/C detection logic) |
•MAP sensor and/or its circuit
•ECM |
|
P0108: Manifold Absolute Pressure / Barometric Pressure Circuit High Output voltage of MAP sensor signal circuit is higher than specified value for specified time. (3 D/C detection logic) |

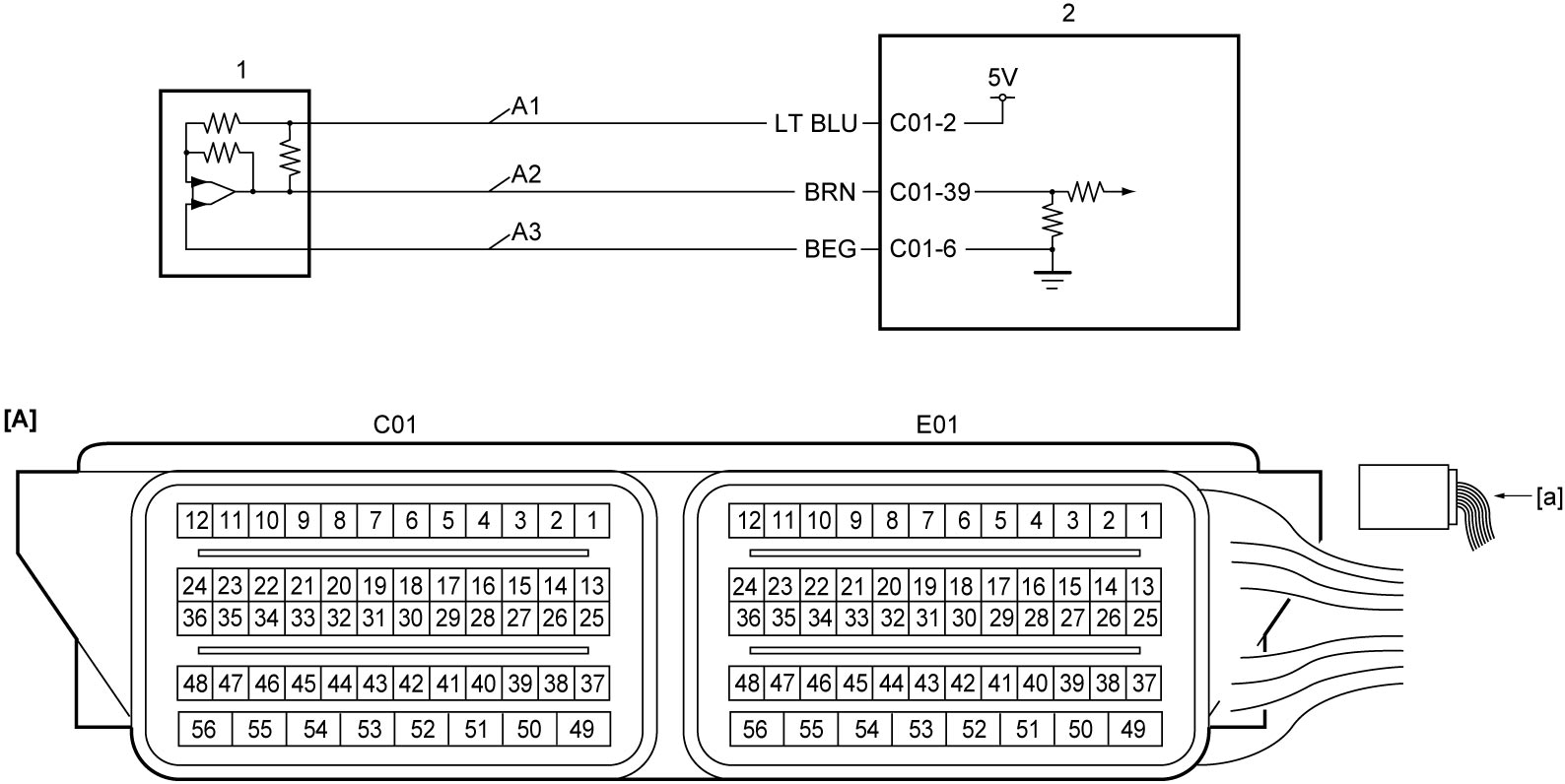

Circuit Diagram
DTC Confirmation Procedure
1)Run engine at idle speed for 10 sec.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
MAP sensor power supply circuit check
1)With ignition “OFF”, disconnect MAP sensor connector.
2)Check for proper terminal connection to MAP sensor connector.
3)If connection is OK, set ignition “ON”.
4)Check that voltage between “A1” and “A3” is approx. 5 V.
Is check result OK?
|
Go to Step 4.
|
Go to Step 3.
|
| 3 |
MAP sensor ground circuit check
1)Check that voltage between “A1” and ground is approx. 5 V.
Is check result OK?
|
Repair “A3” circuit.
|
Check “A1” circuit.
If defective circuit is found, repair “A1” circuit.
|
| 4 |
MAP sensor signal circuit check
1)With ignition “OFF”, disconnect “C01” and “E01” connectors from ECM.
2)Check for proper terminal connection to “C01” and “E01” connectors.
3)If connections are OK, check the following points.
•Resistance of “A2” circuit: less than 1 Ω
•Resistance between “A2” circuit and ground: infinity •Voltage of “A2” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 5.
|
Repair or replace defective wiring harness.
|
| 5 |
MAP sensor check
Is check result OK?
|
