DTC P2100
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P2100: Throttle Actuator “A” Control Motor Circuit / Open Throttle actuator and/or its circuit malfunction (open, short to power supply or short to ground) is detected. (1 D/C detection logic) |
•Throttle actuator and/or its circuit
•ECM |

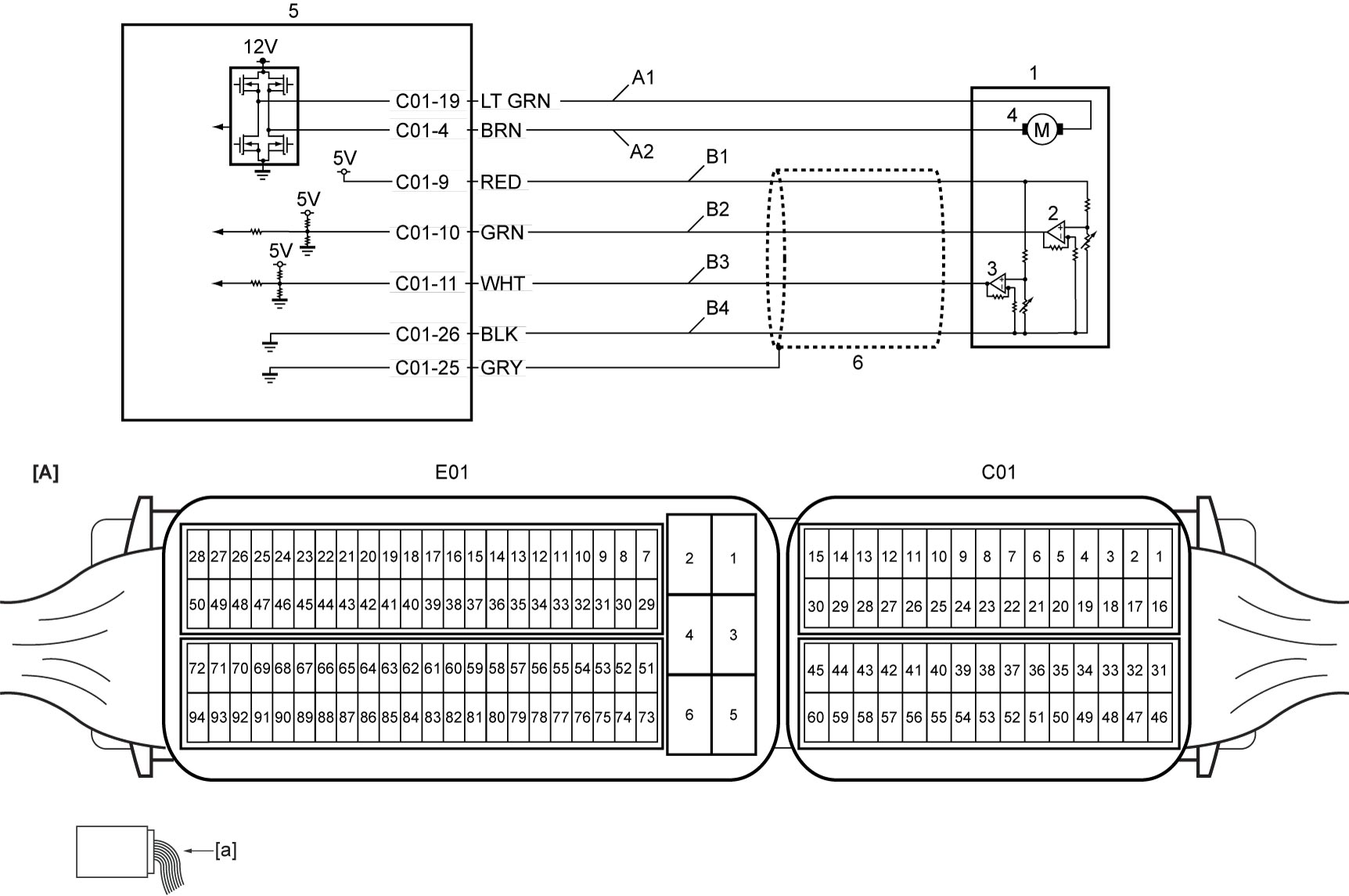

Circuit Diagram
| [A]: | ECM connector (View: [a]) | B3: | TP sensor (sub) signal circuit | 4. | Throttle actuator |
| A1: | Throttle actuator control circuit (close) | B4: | TP sensor ground circuit | 5. | ECM |
| A2: | Throttle actuator control circuit (open) | 1. | Electric throttle body assembly | 6. | Shield wire |
| B1: | TP sensor power supply circuit | 2. | TP sensor (main) | ||
| B2: | TP sensor (main) signal circuit | 3. | TP sensor (sub) |
DTC Confirmation Procedure
1)Set ignition “ON”.
2)Keep accelerator pedal at fully depressed position for 2 sec.
3)Release accelerator pedal for 2 sec.
4)Repeat Step 2) – 3) 3 times.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Throttle actuator drive circuit check
1)With ignition “OFF”, disconnect “C01” and “E01” connectors of ECM and electric throttle body assembly connector.
2)Check for proper terminal connection to “C01” and “E01” connectors and electric throttle body assembly connector.
3)If connections are OK, check the following points.
•Resistance of “A1” and “A2” circuits: less than 1 Ω
•Resistance between each of “A1” and “A2” circuits and ground: infinity •Resistance between “A1” circuit terminal and other terminal at electric throttle body assembly connector: infinity •Resistance between “A2” circuit terminal and other terminal at electric throttle body assembly connector: infinity •Voltage of “A1” and “A2” circuits: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
Electric throttle body assembly check
1)Check electric throttle body assembly for performance.
Is check result OK?
|
Replace ECM and recheck DTC.
|
Replace electric throttle body assembly.
|
