DLC Description
Precautions: General safety (00)

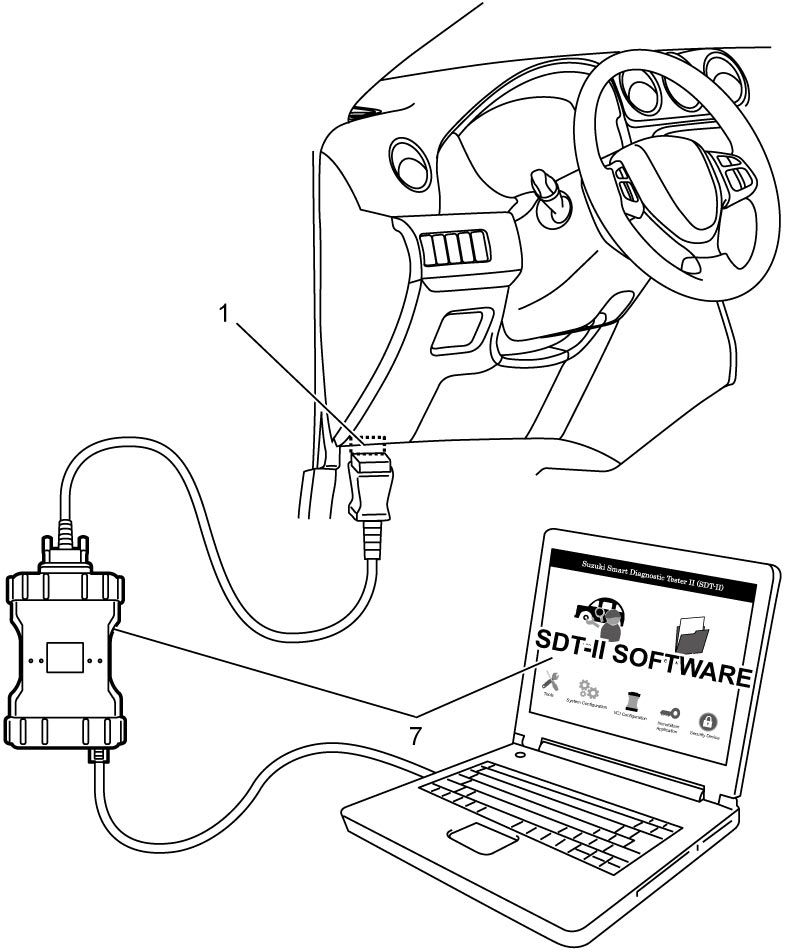

DLC (1) is in compliance with SAE J1962 in the shape of connector and pin assignment.
OBD CAN High line (6) and Low line (3) (CAN line of ISO 15765-4) are used for SUZUKI scan tool (Suzuki SDT-II) (7) or CAN communication OBD generic scan tool to communicate with ECM.
| 2. | B + (Continuous battery power) | 5. | Ground (Chassis ground) |
| 4. | ECM ground (Signal ground) |
