Electronic Control System Component Location
Precautions: General safety (00)
NOTE:

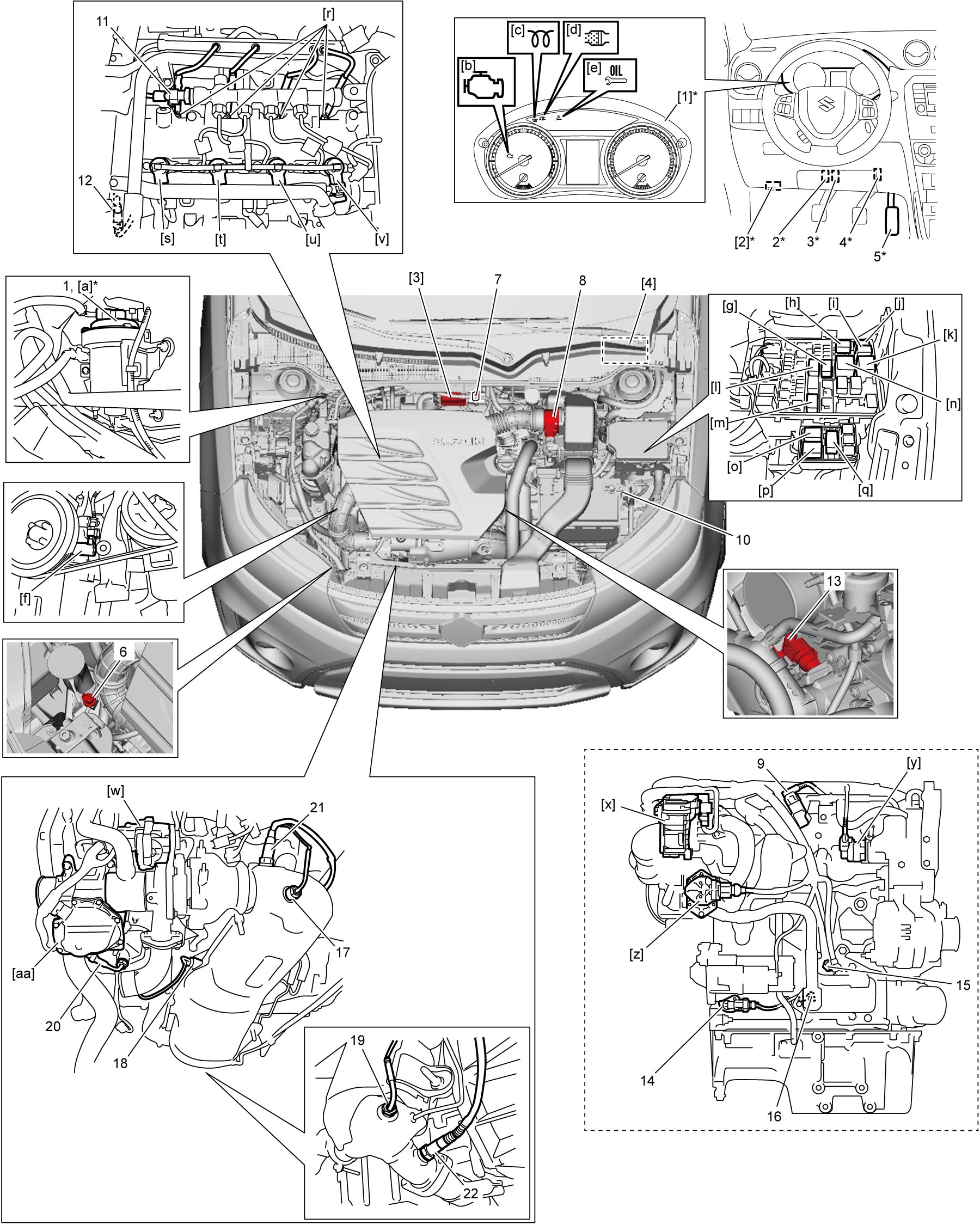

The figure shows component location for LHD. For RHD all component identified by, alphabets and numbers with asterisks (*) are installed on the opposite side.
| Information sensors | Control devices | Others | |||
|---|---|---|---|---|---|
| 1. | Fuel temperature sensor | [a]: | Fuel heater | [1]: | Combination meter |
| 2. | CPP switch No.1 | [b]: | MIL | [2]: | DLC |
| 3. | CPP switch No.2 | [c]: | Glow indicator light | [3]: | Glow plug control module |
| 4. | Brake light switch / brake switch | [d]: | DPF® warning light | [4]: | ECM |
| 5. | APP sensor | [e]: | Oil change request light | ||
| 6. | A/C refrigerant pressure sensor | [f]: | VDOP solenoid valve | ||
| 7. | DPF® differential pressure sensor | [g]: | Fuel pump relay | ||
| 8. | MAF sensor with IAT sensor-1 | [h]: | Radiator cooling fan relay No.1 | ||
| 9. | Boost pressure sensor with IAT sensor-2 | [i]: | Radiator cooling fan relay No.2 | ||
| 10. | Electric load current sensor | [j]: | Radiator cooling fan relay No.3 | ||
| 11. | Fuel pressure sensor | [k]: | Main relay | ||
| 12. | CMP sensor | [l]: | A/C compressor relay | ||
| 13. | ECT sensor | [m]: | Starting motor control relay | ||
| 14. | CKP sensor | [n]: | Fuel heater relay | ||
| 15. | Oil pressure switch-1 | [o]: | Additional heater relay No.1 (if equipped) | ||
| 16. | Oil pressure switch-2 | [p]: | Additional heater relay No.2 (if equipped) | ||
| 17. | EGT sensor-1 | [q]: | Additional heater relay No.3 (if equipped) | ||
| 18. | EGT sensor-2 | [r]: | Glow plug | ||
| 19. | EGT sensor-3 | [s]: | Fuel injector No.1 | ||
| 20. | EGT sensor-4 | [t]: | Fuel injector No.2 | ||
| 21. | A/F sensor-1 | [u]: | Fuel injector No.3 | ||
| 22. | A/F sensor-2 | [v]: | Fuel injector No.4 | ||
| [w]: | Turbocharger actuator | ||||
| [x]: | Inlet throttle valve | ||||
| [y]: | Fuel flow actuator | ||||
| [z]: | EGR-1 valve | ||||
| [aa]: | EGR-2 valve | ||||
