DTC P0515
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P0515: Battery Temperature Sensor Circuit Any of the following conditions is met.
•Output voltage of battery temperature sensor signal circuit is lower than 0.10 V for 5 sec. (1 D/C detection logic but MIL does not light up)•Output voltage of battery temperature sensor signal circuit is higher than 4.85 V for 5 sec. |
•Electric load current sensor and/or its circuit
•ECM •ENG A-STOP control module (ENG A-STOP model) |

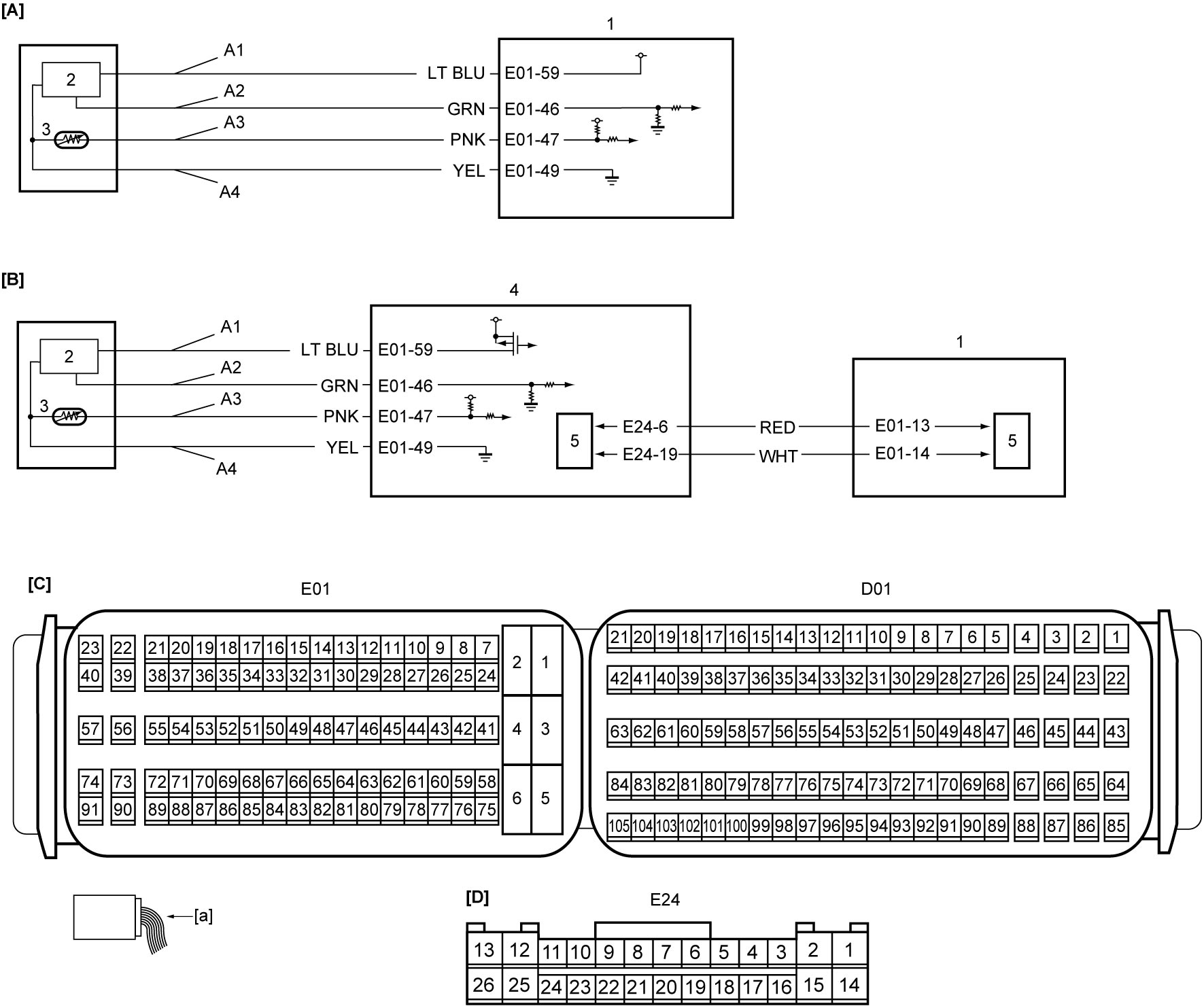

Circuit Diagram
| [A]: | Non-ENG A-STOP model | A2: | Electric load current sensor signal circuit | 3. | Battery temperature sensor |
| [B]: | ENG A-STOP model | A3: | Battery temperature sensor signal circuit | 4. | ENG A-STOP control module |
| [C]: | ECM connector (View: [a]) | A4: | Electric load current sensor ground circuit | 5. | CAN driver |
| [D]: | ENG A-STOP control module connector (View: [a]) | 1. | ECM | ||
| A1: | Electric load current sensor power supply circuit | 2. | Electric load current sensor |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Non-ENG A-STOP model: Go to Step 2.
ENG A-STOP model: Go to Step 3.
|
|
| 2 |
Battery temperature sensor signal circuit and ground circuit check
1)With ignition is “OFF”, disconnect “E01” connector from ECM and electric load current sensor connector.
2)Check for proper terminal connection to “E01” connector and electric load current sensor connector.
3)If connections are OK, check the following points.
•Resistance of “A3” and “A4” circuits: less than 1 Ω
•Resistance between each of “A3” and “A4” circuits and ground: infinity •Resistance between “A3” circuit terminal and other terminal at electric load current sensor connector: infinity •Resistance between “A4” circuit terminal and other terminal at electric load current sensor connector: infinity •Voltage of “A3” and “A4” circuits: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 6.
|
Repair or replace defective wire harness.
|
| 3 |
DTC check
1)Check DTC in ENG A-STOP control module.
Is DTC P1326 or P1327 detected?
|
Go to troubleshooting in DTC P1326 / P1327.
|
Go to Step 4.
|
| 4 |
DTC check
Is there any DTC other than P1326 or P1327 detected?
|
Go to troubleshooting for detected DTC.
|
Go to Step 5.
|
| 5 |
Battery temperature sensor signal circuit and electric load current sensor ground circuit check
1)Check “A3” and “A4” circuits between battery temperature sensor and ENG A-STOP control module according to Step 1 of DTC P1326 / P1327.
Is check result OK?
|
Go to Step 6.
|
Repair or replace defective wire harness.
|
| 6 |
Battery temperature sensor check
1)Check battery temperature sensor.
Is check result OK?
|
Replace ECM and recheck DTC.
|
Replace electric load current sensor.
|
