DTC P0601 / P0606 / P0607 / P060A / P060D / P0611 / P061A / P061B / P061C / P061D / P1623
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P0601: Internal Control Module Memory Check Sum Error Internal control module memory check sum error (1 D/C detection logic) |
•ECM power supply circuit and/or ground circuit
•ECM |
|
P0606: Control Module Processor ECM has internal fault. (1 D/C detection logic) |
|
|
P0607: Control Module Performance ECM has internal fault. (1 D/C detection logic or 1 D/C detection logic but MIL does not light up) |
|
|
P060A: Internal Control Module Monitoring Processor Performance ECM has internal fault. (1 D/C detection logic) |
|
|
P060D: Internal Control Module Accelerator Pedal Position Performance ECM has internal fault. (1 D/C detection logic but MIL does not light up) |
|
|
P0611: Fuel Injector Control Module Performance ECM has internal fault. (1 D/C detection logic) |
|
|
P061A: Internal Control Module Torque Performance ECM has internal fault. (1 D/C detection logic) |
|
|
P061B: Internal Control Module Torque Calculation Performance ECM has internal fault. (1 D/C detection logic) |
|
|
P061C: Internal Control Module Engine RPM Performance ECM has internal fault. (1 D/C detection logic) |
|
|
P061D: Internal Control Module Engine Air Mass Performance ECM has internal fault. (3 D/C detection logic) |
|
|
P1623: SPI Communication ECM has internal fault. (1 D/C detection logic) |

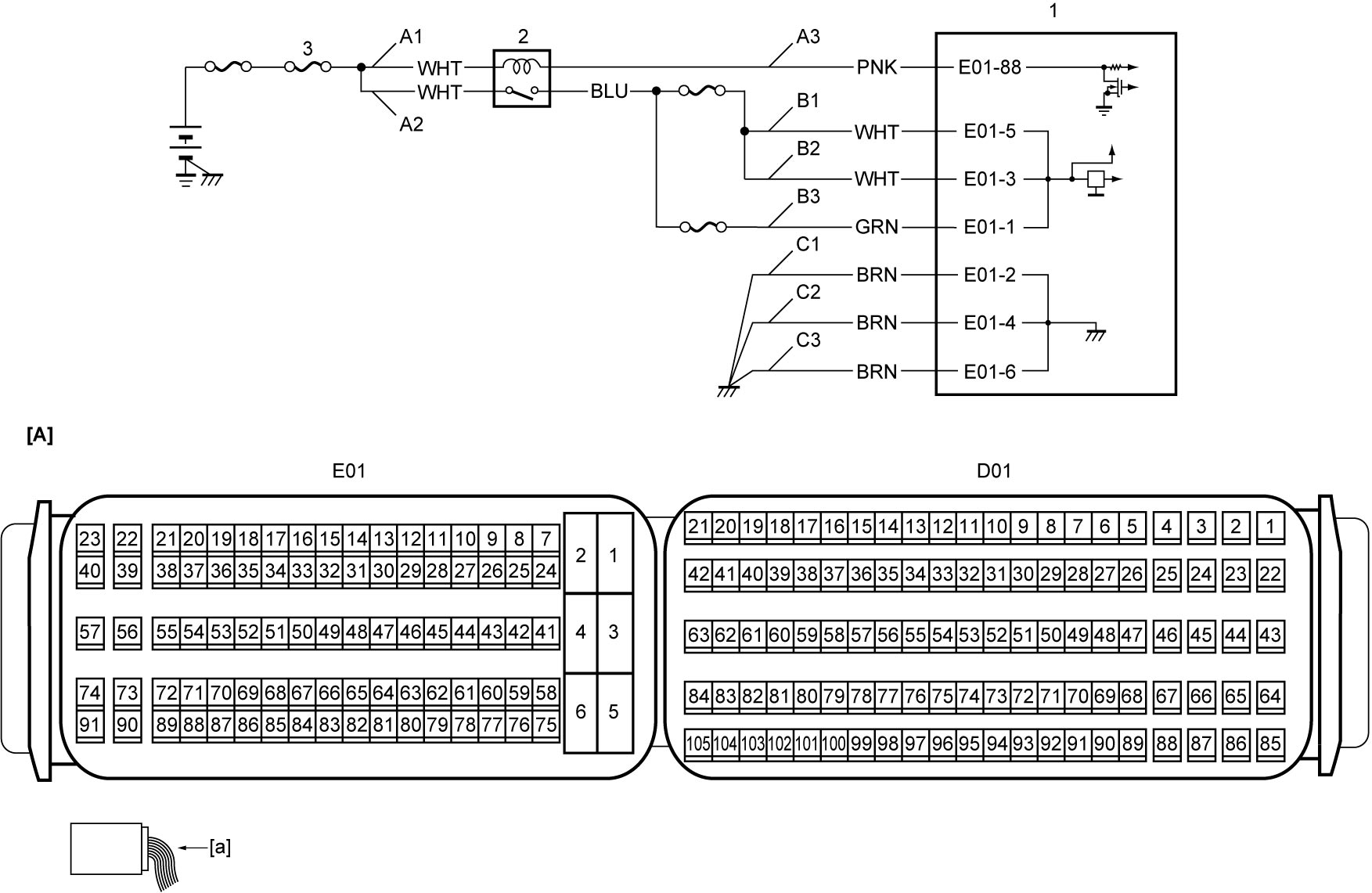

Circuit Diagram
| [A]: | ECM connector (View: [a]) | B2: | ECM power supply circuit | 1. | ECM |
| A1: | Main relay power supply circuit (coil side) | B3: | ECM power supply circuit | 2. | Main relay |
| A2: | Main relay power supply circuit (switch side) | C1: | ECM ground circuit | 3. | “FI” fuse (30 A) |
| A3: | Main relay drive circuit | C2: | ECM ground circuit | ||
| B1: | ECM power supply circuit | C3: | ECM ground circuit |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
DTC recheck
1)Clear DTC.
2)Set ignition “OFF”.
3)Check DTCs.
Is DTC P0601, P0606, P0607, P060A, P060D, P0611, P061A, P061B, P061C, P061D or P1623 still detected?
|
Go to Step 3.
|
Check for intermittent trouble.
|
| 3 |
ECM power supply circuit and ground circuit check
1)Check “B1”, “B2”, “B3”, “C1”, “C2” and “C3” circuits according to Step 2 of DTC P0562 / P0563:D16AA.
Is check result OK?
|
Replace ECM and recheck DTC.
|
Repair or replace defective wire harness.
|
