Glow Plug Removal and Installation

Precautions: General safety (00)

Removal
1)Disconnect negative (–) cable at battery.
2)Remove engine cover. icon
3)Remove air cleaner outlet pipe. icon
4)Pull off glow plug wires (1).
5)Loosen glow plugs using a tool.
6)Remove glow plugs from cylinder head by hand.
Installation
Reverse removal procedure noting the following points.
•Tighten glow plug to specified torque.
Tightening torque

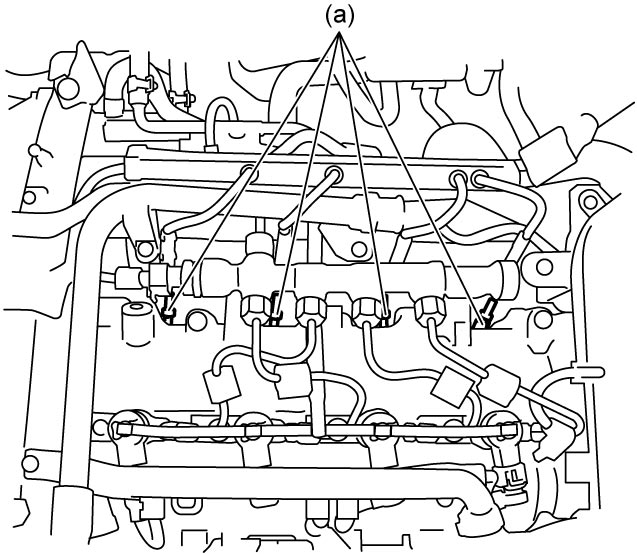

Glow plug (a): 8.0 N·m (0.82 kgf-m, 6.0 lbf-ft)
