Suzuki Vitara (LY) 2016-2017 · Service Manual D16AA · Repair Instructions

Glow Plug Inspection

Precautions: General safety (00)

Reference: Glow Plug Removal and Installation:D16AA

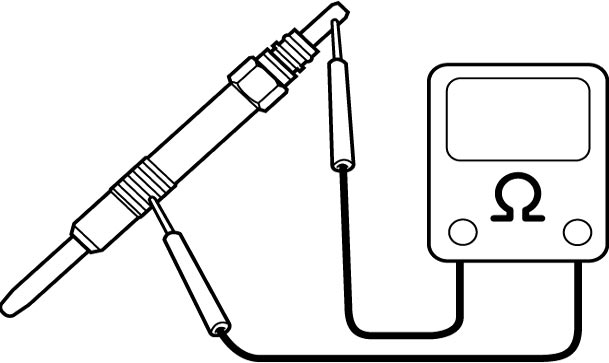

Measure glow plug resistance as shown below.

If resistance is not as specified, replace glow plug.

Glow plug resistance

Approx. 0.4 Ω at 20 °C (68 °F)
