APP Sensor Assembly On-Vehicle Inspection

Precautions: General safety (00)

1)Check APP sensor assembly has been mounted to vehicle body properly (no pinched floor carpet, etc.).
If mounting is not proper, reinstall APP sensor assembly.

2)When ignition is “OFF”, connect SUZUKI scan tool to DLC.

3)Set ignition “ON” and select “Data List” mode.

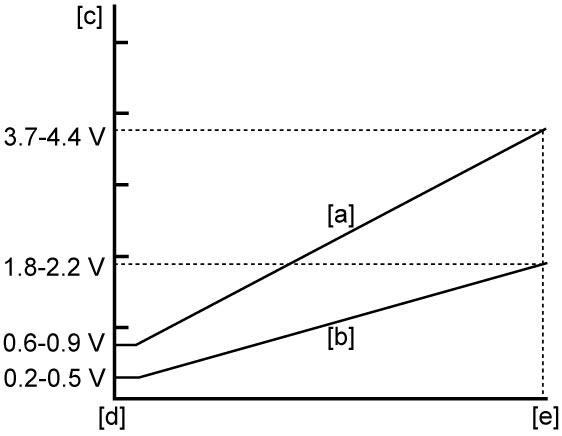

4)Check APP sensor voltage varies depending on accelerator pedal position as shown in the following graph.
If check result is not as specified, check the following points:

•Wire harness and connections
•APP sensor

[a]:	APP sensor (main) voltage
[b]:	APP sensor (sub) voltage
[c]:	Voltage
[d]:	Accelerator pedal: Idle position
[e]:	Accelerator pedal: Fully depressed position
