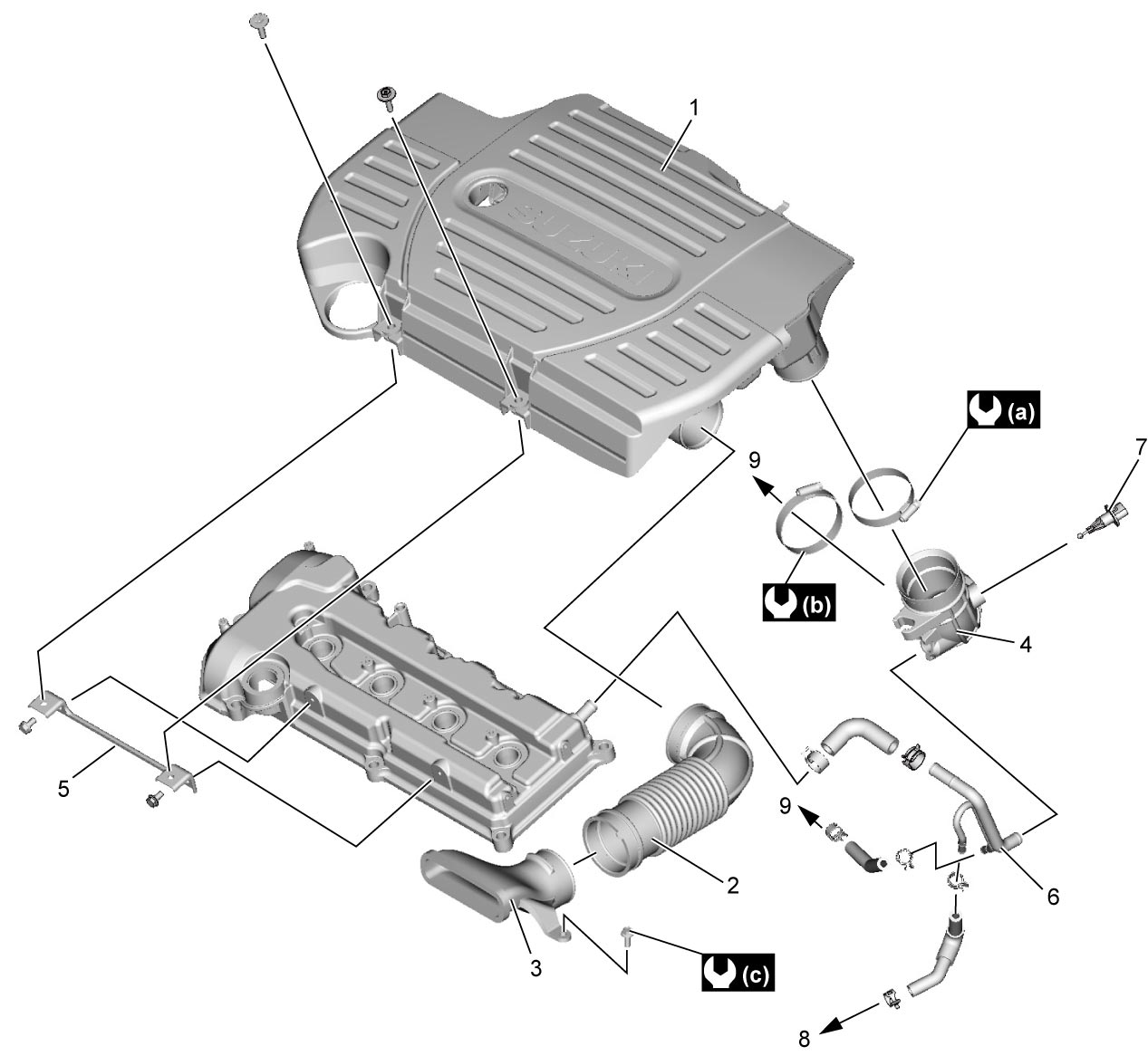

Air Cleaner Components
Precautions: General safety (00)
| 1. | Air cleaner assembly | 5. | Air cleaner bracket | 9. | To electric throttle body assembly |
| 2. | Air cleaner suction hose | 6. | Breather pipe |
 : |
1.3 N·m (0.13 kgf-m, 1.0 lbf-ft) |
| 3. | Air cleaner suction pipe | 7. | IAT sensor |
 : |
3.1 N·m (0.32 kgf-m, 2.5 lbf-ft) |
| 4. | Air cleaner outlet hose | 8. | To cooling water pipe |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
