Suzuki Vitara (LY) 2016-2017 · Service Manual M16A · Repair Instructions

Air Cleaner Filter Removal and Installation

Precautions: General safety (00)

Removal
1)Remove air cleaner assembly. icon

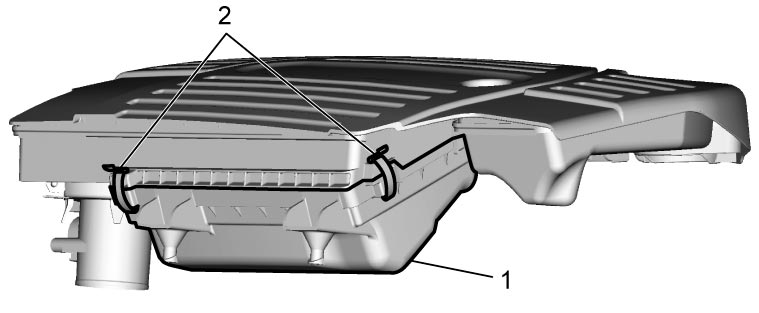

2)Open air cleaner case (1) by unhooking its clamps (2).
3)Remove air cleaner filter from case.
Installation
Reverse removal procedure.
