Intercooler Removal and Installation
Precautions: General safety (00)
Removal
1)Remove front bumper.
2)Remove front bumper upper member.
3)Remove intercooler left shroud (1) and intercooler right shroud (2).

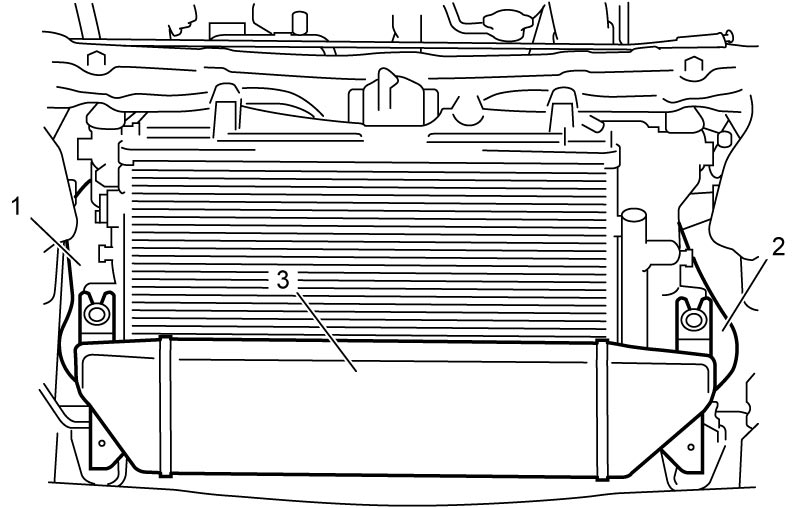

4)Disconnect intercooler inlet hose (1) and inter cooler outlet hose No.1 (2) from intercooler (3).
5)Remove intercooler.
Installation
Reverse removal procedure noting the following point.
•Tighten hose clamps and mounting bolts to specified torque.
