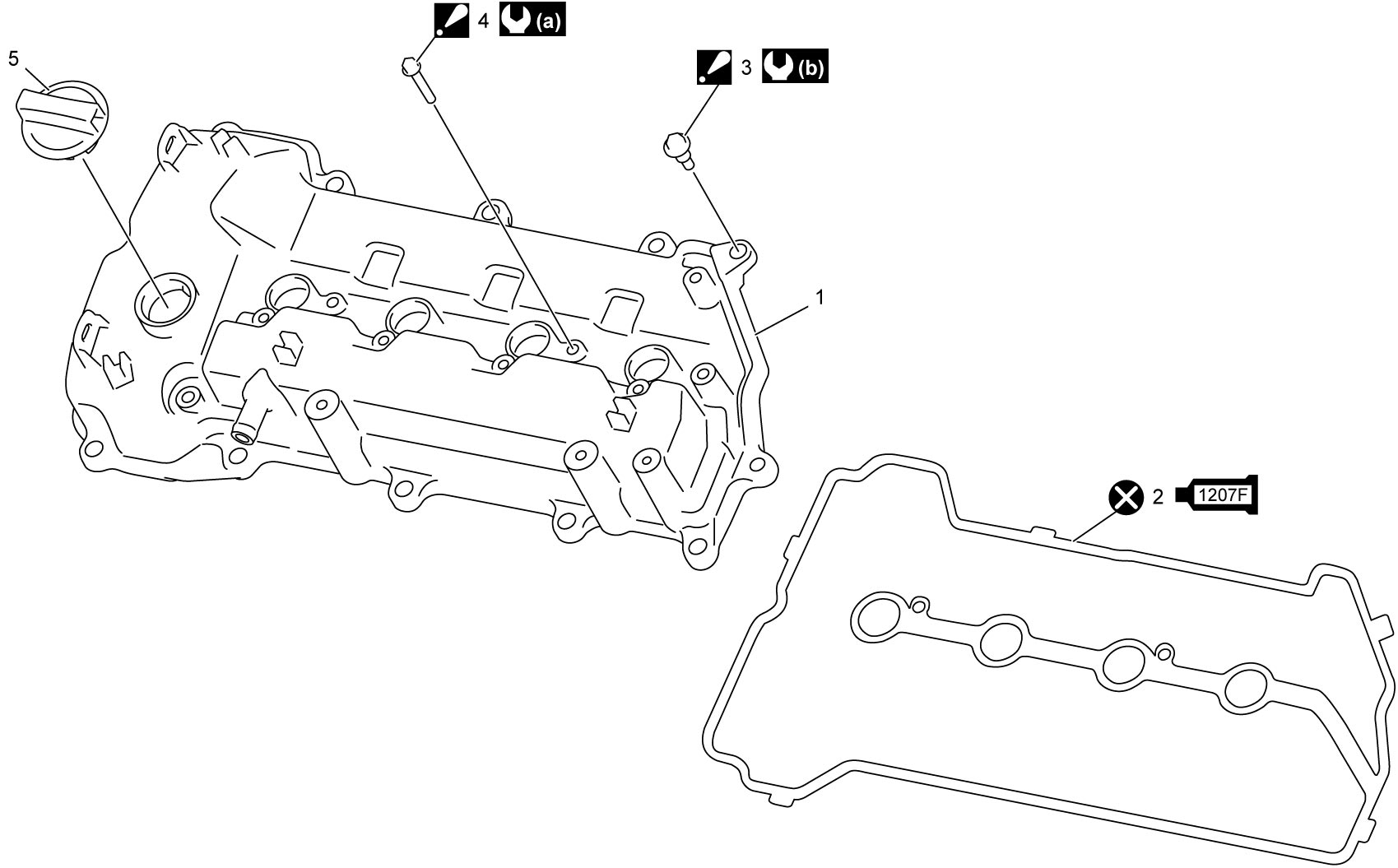

Cylinder Head Cover Components
Precautions: General safety (00)
| 1. | Cylinder head cover |
 4. |
Cylinder head cover bolt No.2 : For tightening order, refer to Cylinder Head Cover Removal and Installation:K14C. |
 : |
5.0 N·m → 7.5 N·m (0.51 kgf-m → 0.76 kgf-m, 4.0 lbf-ft → 5.5 lbf-ft) |
 2. |
Cylinder head cover gasket : Apply sealant 99000-31250 referring to Cylinder Head Cover Removal and Installation:K14C. |
5. | Oil filler cap |
 : |
Do not reuse. |
|
3. |
Cylinder head cover bolt No.1 : For tightening order, refer to Cylinder Head Cover Removal and Installation:K14C. |
 : |
5.0 N·m → 10 N·m (0.51 kgf-m → 1.0 kgf-m, 4.0 lbf-ft → 7.5 lbf-ft) |
