Timing Chain Cover Inspection

Check oil seal lip for fault or other damage. Replace it if necessary.

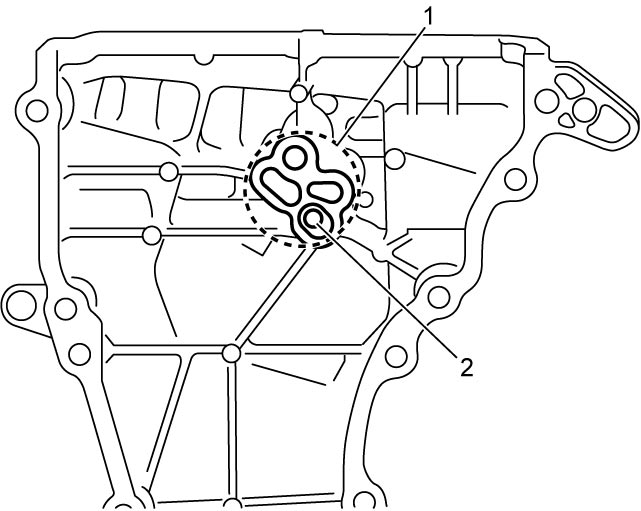

Check oil passages (1) for VVT actuator and filter (2).

Clean oil passages and filter if clogging or foreign material exists.
