OCV Removal and Installation

Removal

1)Disconnect negative (–) cable at battery.

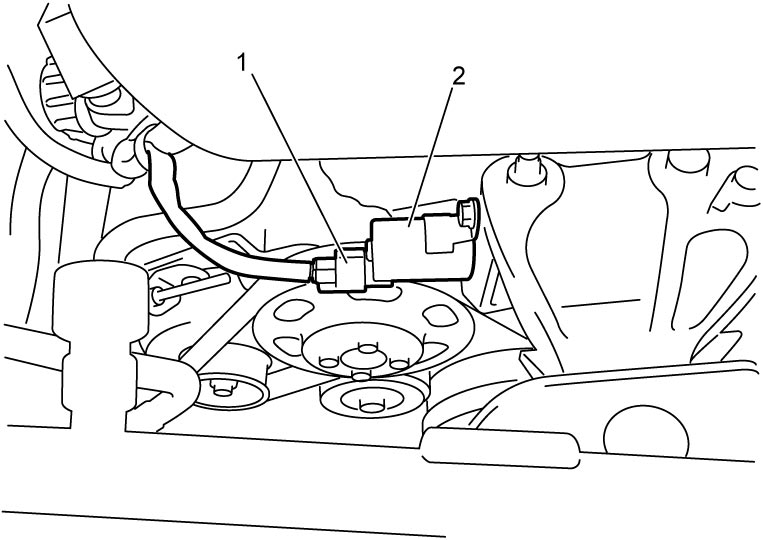

2)Disconnect OCV connector (1).

3)Remove OCV (2) from timing chain cover.

Installation

Reverse removal procedure noting the following points.

•Apply engine oil to O-ring and carefully insert OCV to timing chain cover.

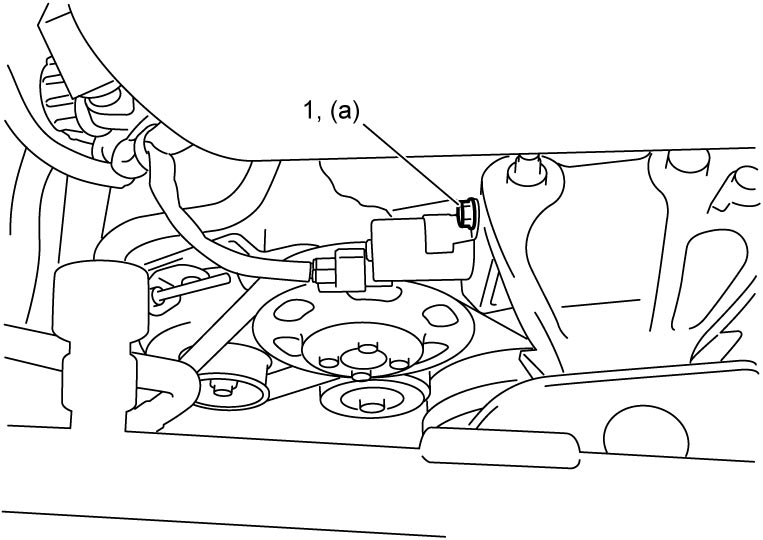

•Tighten OCV bolt (1) to specified torque.

Tightening torque

OCV bolt (a): 11 N·m (1.1 kgf-m, 8.5 lbf-ft)
