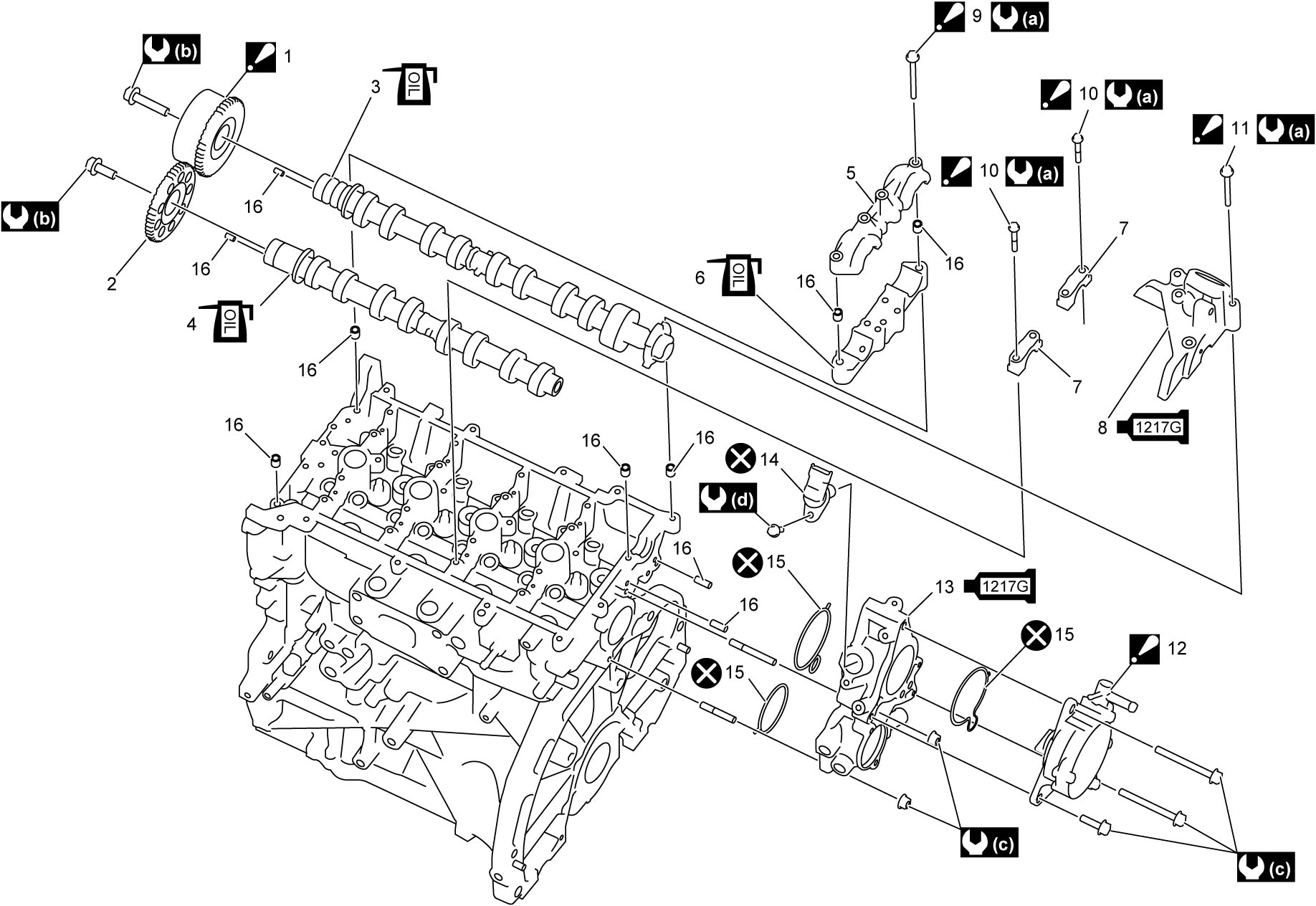

Camshaft Components
Precautions: General safety (00)
 1. |
VVT actuator : Do not disassemble. |
 8. |
Camshaft intake rear housing : Apply sealant 99000-31260. For details, refer to Camshaft Removal and Installation:K14C. |
15. | O-ring |
| 2. | Exhaust camshaft timing sprocket |
9. |
Camshaft housing bolt No.1 : For tightening order, refer to Camshaft Removal and Installation:K14C. |
16. | Dowel pin |
 3. |
Intake camshaft : Apply engine oil to sliding surface. |
10. |
Camshaft housing bolt No.2 : For tightening order, refer to Camshaft Removal and Installation:K14C. |
 : |
5.0 N·m → 8.0 N·m → 11 N·m (0.51 kgf-m → 0.82 kgf-m → 1.1 kgf-m, 4.0 lbf-ft → 6.0 lbf-ft → 8.5 lbf-ft) |
|
4. |
Exhaust camshaft : Apply engine oil to sliding surface. |
11. |
Camshaft intake rear housing bolt : For tightening order, refer to Camshaft Removal and Installation:K14C. |
 : |
60 N·m (6.1 kgf-m, 44.5 lbf-ft) |
| 5. | Camshaft front upper housing |
12. |
Vacuum pump : For installation, refer to Vacuum Pump Removal and Installation:K14C. |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
|
6. |
Camshaft front lower housing : For applying engine oil, refer to Camshaft Removal and Installation:K14C. |
13. |
Thermostat case : Apply sealant 99000-31260. For details, refer to Camshaft Removal and Installation:K14C. |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 7. | Camshaft housing | 14. | CMP sensor |
 : |
Do not reuse. |
