Intercooler Components
Precautions: General safety (00)

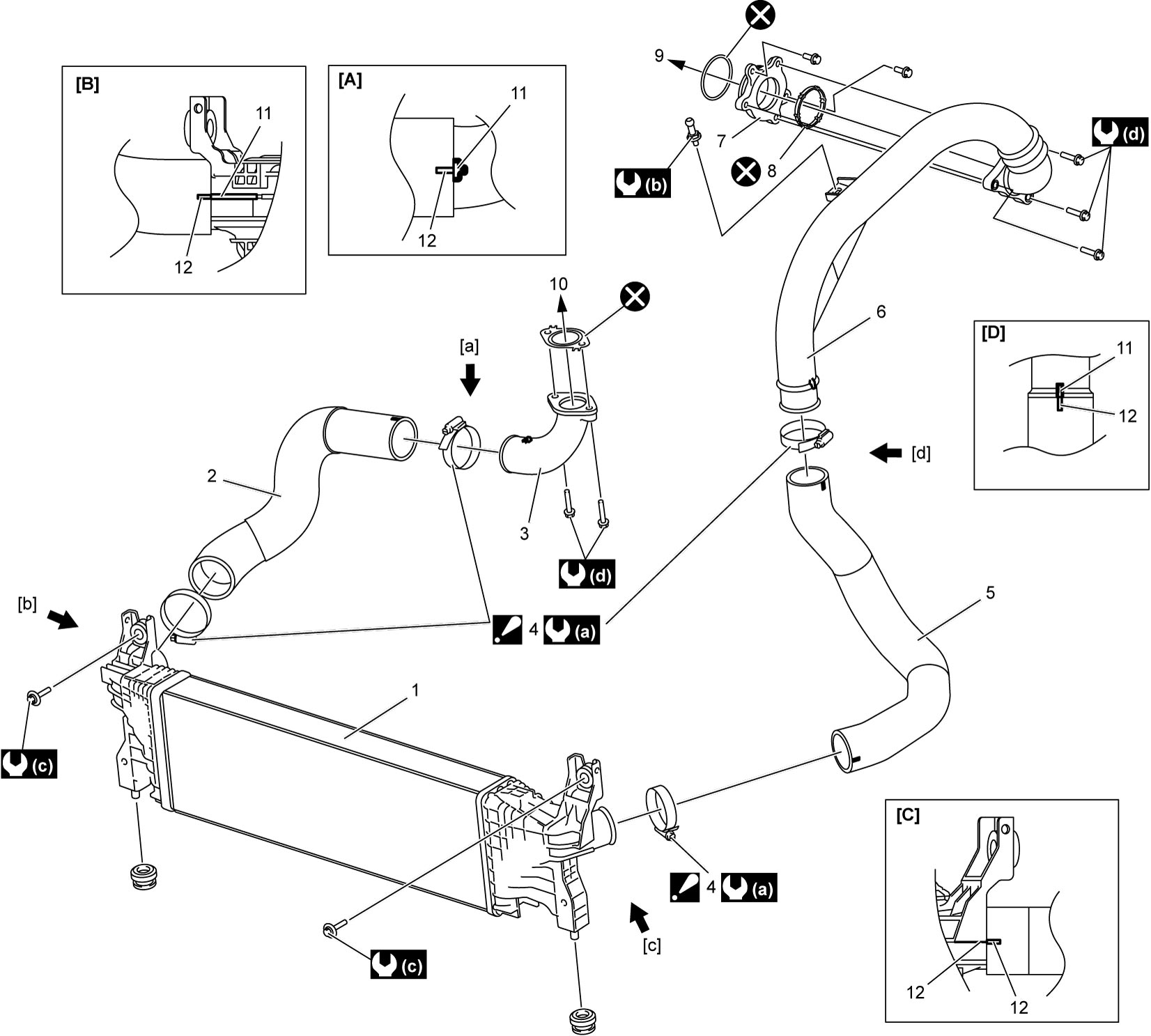

| [A]: | View: [a] |
 4. |
Hose clamp : Position clamp screw in specified place as shown in figure. |
11. | Protrusion |
| [B]: | View: [b] | 5. | Intercooler outlet hose | 12. | Matchmark |
| [C]: | View: [c] | 6. | Intercooler outlet pipe |
 : |
4.5 N·m (0.46 kgf-m, 3.5 lbf-ft) |
| [D]: | View: [d] | 7. | Air intake joint spacer |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 1. | Intercooler | 8. | Air intake joint gasket |
 : |
8.5 N·m (0.87 kgf-m, 6.5 lbf-ft) |
| 2. | Intercooler inlet hose | 9. | To inlet throttle valve |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 3. | Turbocharger outlet air joint | 10. | To turbocharger |
 : |
Do not reuse. |
