Intercooler Removal and Installation
Precautions: General safety (00)
Removal
1)Remove front bumper.

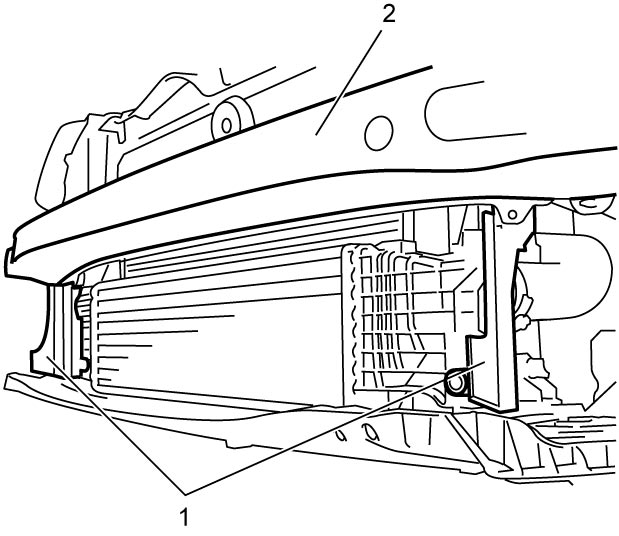

2)Remove front bumper upper member (2).
3)Remove intercooler shrouds (1).

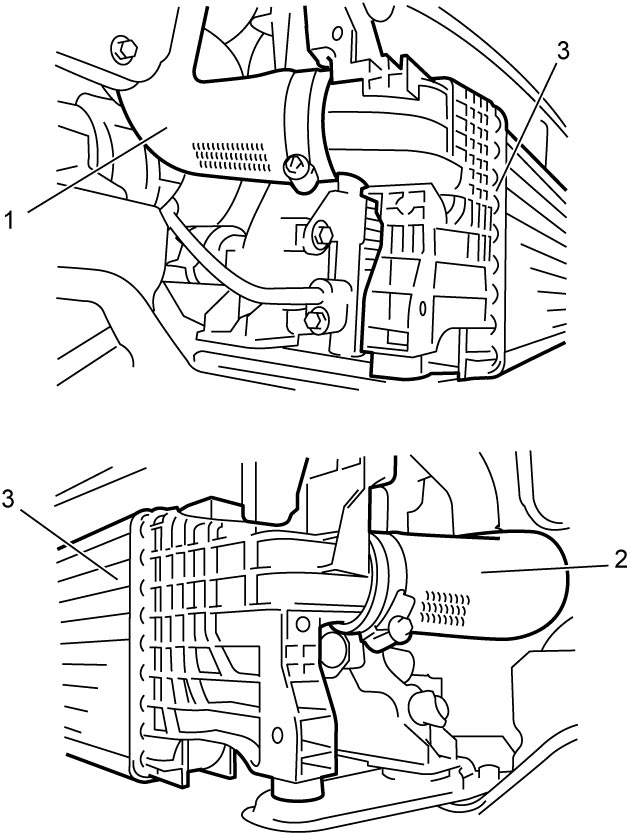

4)Disconnect intercooler inlet hose (1) and outlet hose (2) from intercooler.
5)Remove intercooler (3).
Installation
Reverse removal procedure noting the following point.
•Tighten hose clamps to specified torque.
