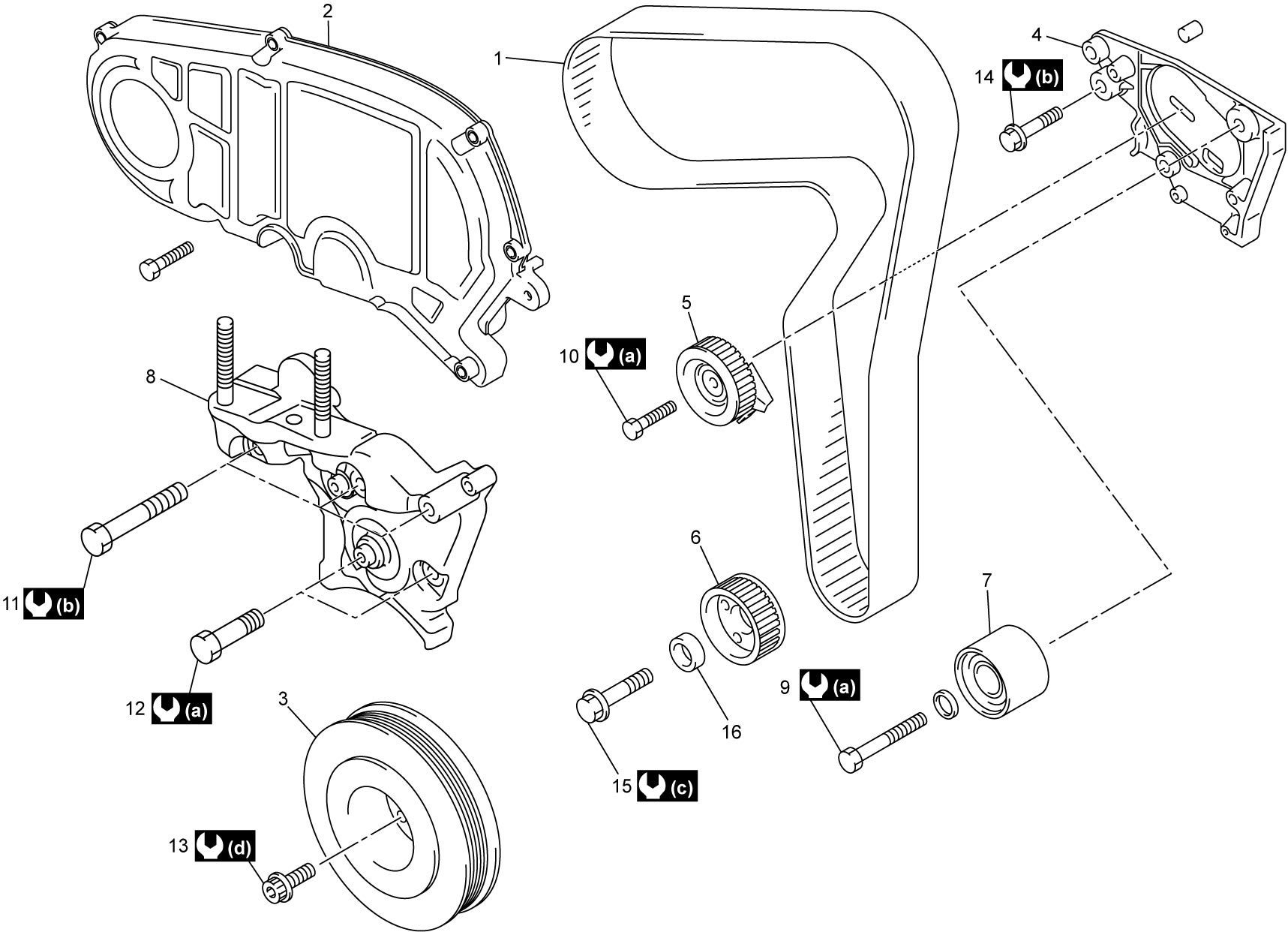

Timing Belt and Belt Tensioner Components

Precautions: General safety (00)

1.	Timing belt	8.	Engine right mounting bracket	15.	Crankshaft timing belt pulley bolt
2.	Timing belt cover	9.	Timing belt idler pulley bolt	16.	Crankshaft pulley washer
3.	Crankshaft pulley	10.	Timing belt tensioner bolt	:	26 N·m (2.7 kgf-m, 19.5 lbf-ft)
4.	Timing belt tensioner support	11.	Engine right mounting bracket bolt (M10)	:	50 N·m (5.1 kgf-m, 37.0 lbf-ft)
5.	Timing belt tensioner	12.	Engine right mounting bracket bolt (M8)	:	340 N·m (34.7 kgf-m, 251.0 lbf-ft)
6.	Crankshaft timing belt pulley	13.	Crankshaft pulley bolt	:	30 N·m (3.1 kgf-m, 22.5 lbf-ft)
7.	Idler pulley	14.	Timing belt tensioner support bolt
