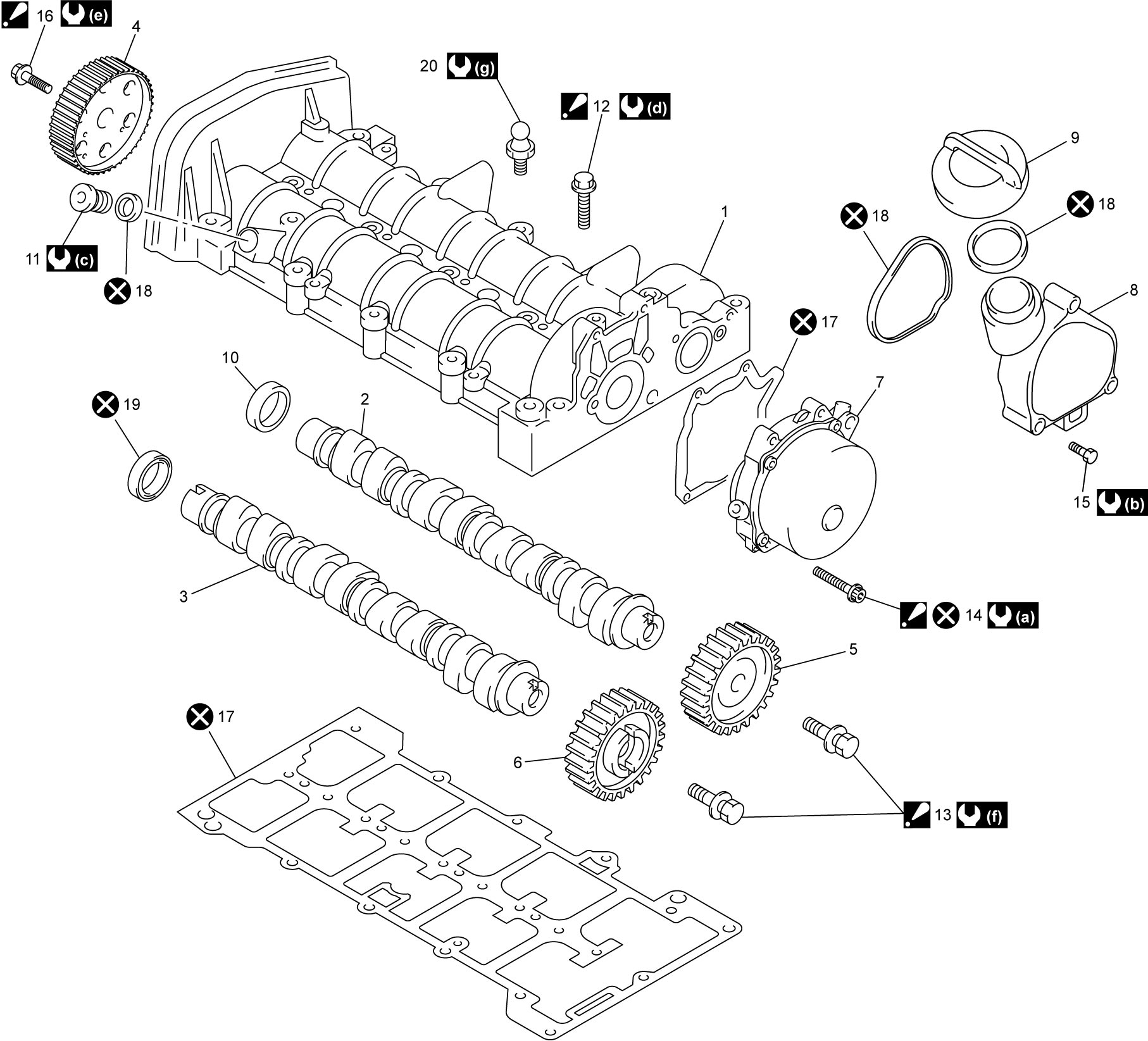

Camshaft Housing Assembly Components
Precautions: General safety (00)
| 1. | Camshaft housing | 11. | Camshaft housing plug |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 2. | Intake camshaft | 12. | Camshaft housing bolt : For tightening order, refer to Camshaft Housing Assembly Removal and Installation:D16AA. |
 : |
9.0 N·m (0.92 kgf-m, 7.0 lbf-ft) |
| 3. | Exhaust camshaft |
 13. |
Camshaft gear bolt : For tightening order, refer to Camshaft Housing Assembly Removal and Installation:D16AA. |
 : |
15 N·m (1.5 kgf-m, 11.0 lbf-ft) |
| 4. | Camshaft pulley |
14. |
Vacuum pump bolt : For tightening order, refer to Vacuum Pump Removal and Installation:D16AA. |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
| 5. | Intake camshaft gear | 15. | Oil filler tube bolt |
 : |
30 N·m → +40° (3.1 kgf-m → +40°, 22.5 lbf-ft → +40°) |
| 6. | Exhaust camshaft gear |
16. |
Camshaft pulley bolt : For tightening order, refer to Camshaft Housing Assembly Removal and Installation:D16AA. |
 : |
31 N·m → +40° (3.2 kgf-m → +40°, 23.0 lbf-ft → +40°) |
| 7. | Vacuum pump | 17. | Gasket |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 8. | Oil filler tube | 18. | O-ring |
 : |
Do not reuse. |
| 9. | Oil filler cap | 19. | Oil seal | ||
| 10. | Plug | 20. | Engine cover bolt |
