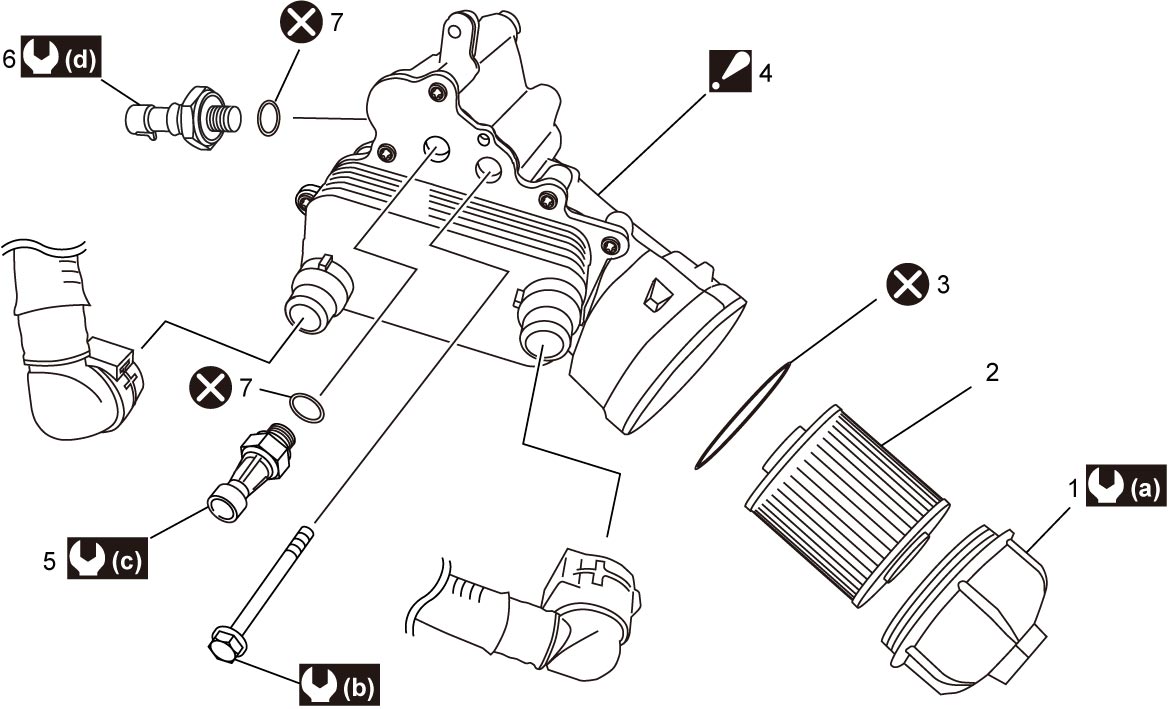

Heat Exchanger No.1 Components
Precautions: General safety (00)
| 1. | Oil filter cover | 5. | Oil pressure switch-1 |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 2. | Oil filter | 6. | Oil pressure switch-2 |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft |
| 3. | O-ring | 7. | Gasket |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
 4. |
Heat exchanger No.1 : Never disassemble heat exchanger No.1. |
 : |
30 N·m (3.1 kgf-m, 22.5 lbf-ft) |
 : |
Do not reuse. |
