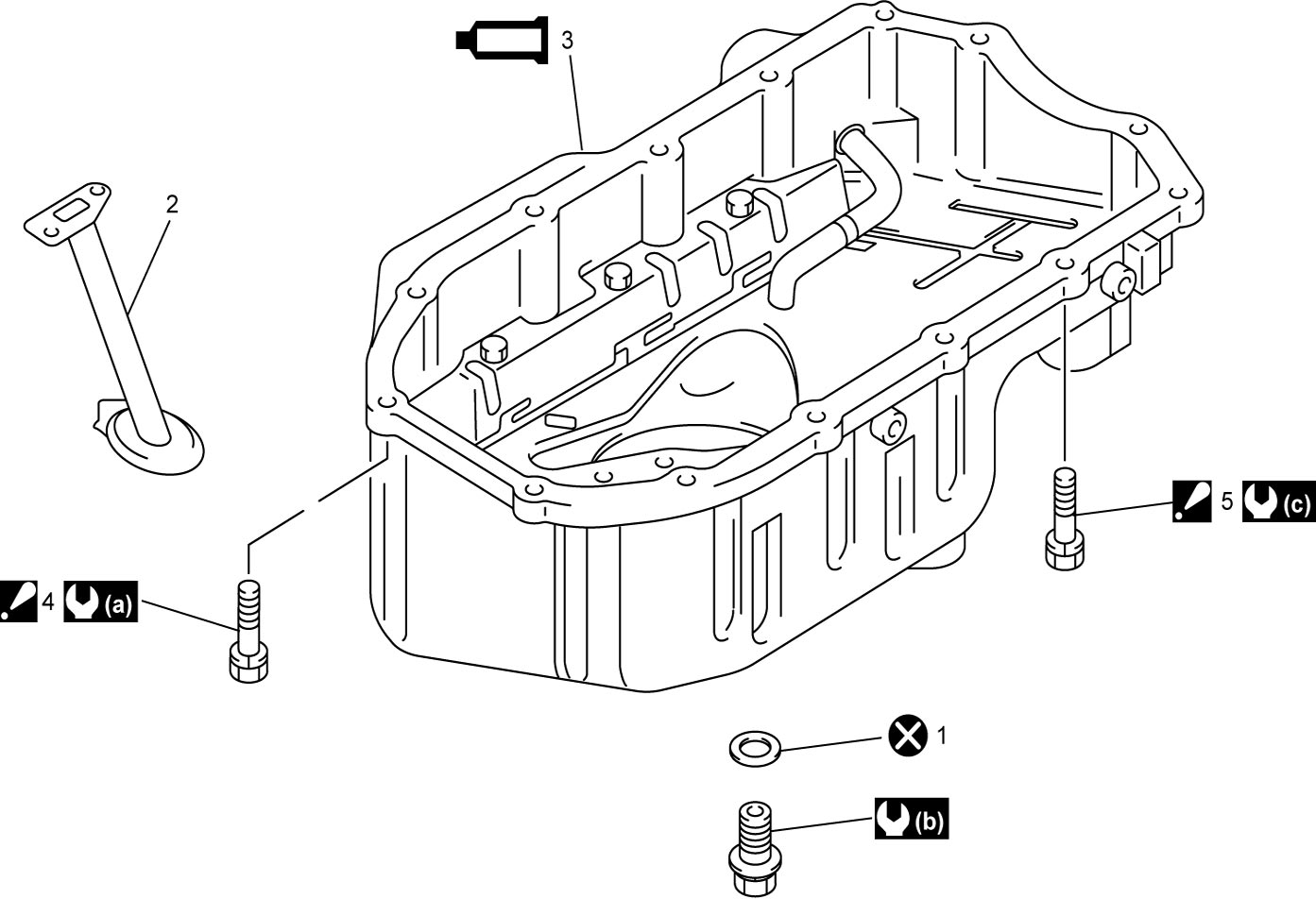

Oil Pan and Oil Pump Strainer Components
Precautions: General safety (00)
| 1. | Gasket |
 4. |
Oil pan bolt (M6) : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:D16AA. |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| 2. | Oil pump strainer |
5. |
Oil pan bolt (M8) : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:D16AA. |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
 3. |
Oil pan : Apply sealant Dow Corning® 7091 to mating surface. |
 : |
9.0 N·m (0.92 kgf-m, 7.0 lbf-ft) |
 : |
Do not reuse. |
