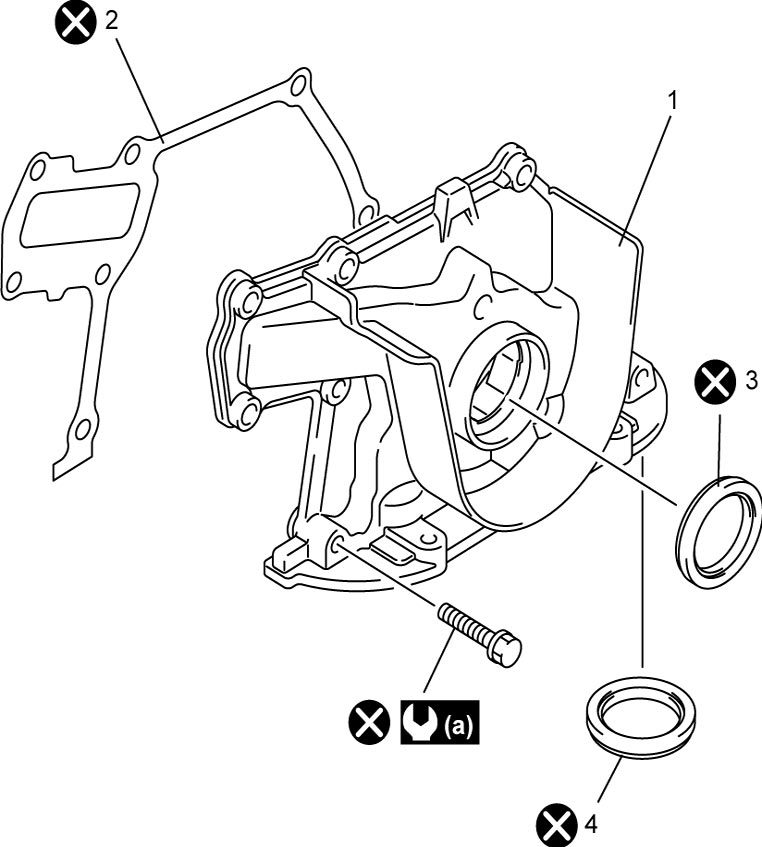

Oil Pump Components
Precautions: General safety (00)
| 1. | Oil pump | 4. | Oil pump strainer oil seal |
| 2. | Gasket |
 : |
9.0 N·m (0.92 kg-m, 7.0 lbf-ft) |
| 3. | Crankshaft front oil seal |
 : |
Do not reuse. |
Precautions: General safety (00)
| 1. | Oil pump | 4. | Oil pump strainer oil seal |
| 2. | Gasket |
: |
9.0 N·m (0.92 kg-m, 7.0 lbf-ft) |
| 3. | Crankshaft front oil seal |
: |
Do not reuse. |
