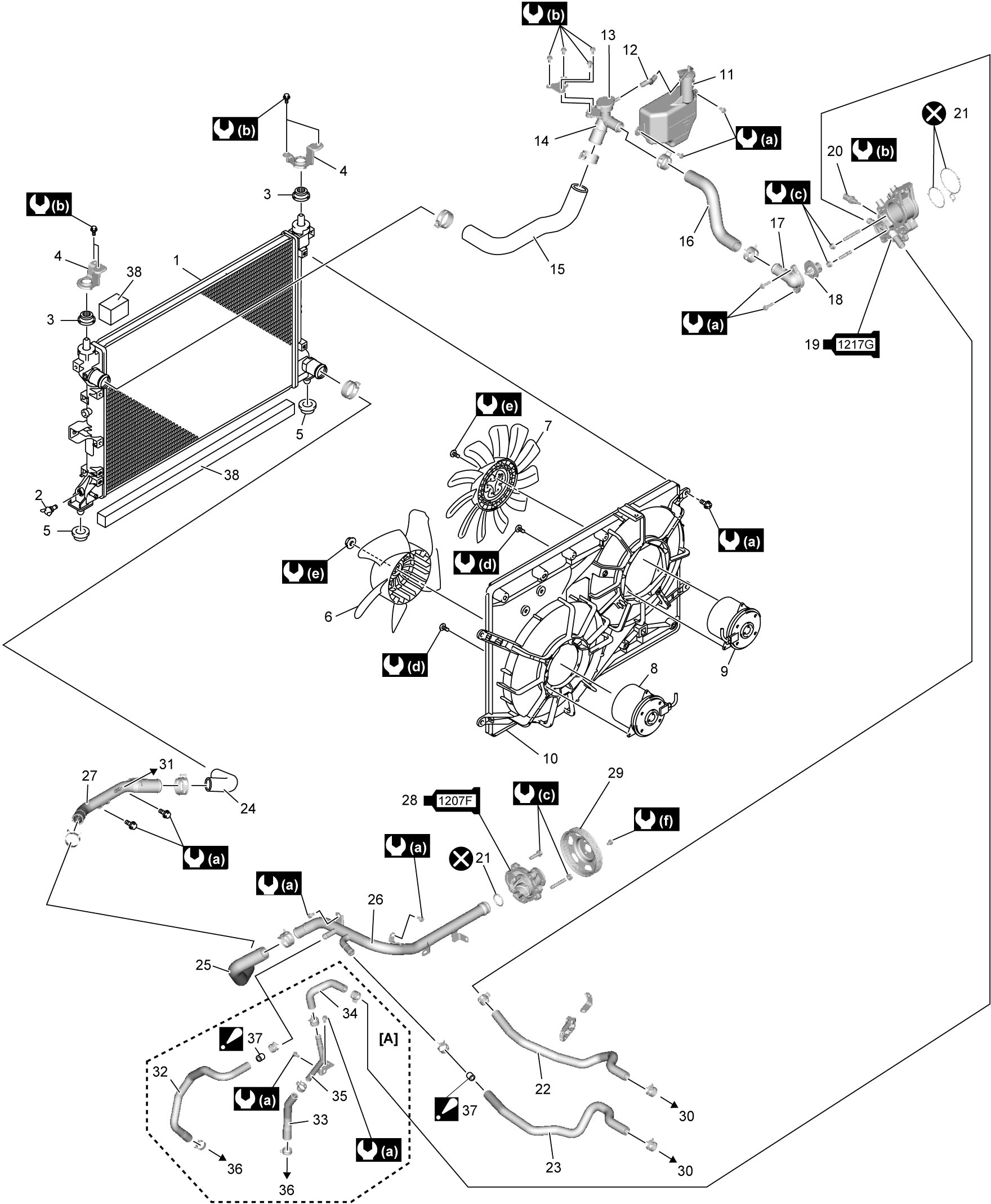

Cooling System Components
Precautions: Precautions for Cooling System · General safety (00)
| [A]: | A/T model | 16. | Radiator inlet hose No.2 | 32. | ATF cooler inlet hose |
| 1. | Radiator | 17. | Thermostat cap | 33. | ATF cooler outlet hose No.1 |
| 2. | Drain plug | 18. | Thermostat | 34. | ATF cooler outlet hose No.2 |
| 3. | Radiator upper mount |
 19. |
Thermostat case : Apply sealant 99000-31260. For details, refer to Camshaft Removal and Installation:K14C. |
35. | Oil cooler pipe |
| 4. | Radiator upper bracket | 20. | ECT sensor | 36. | To ATF cooler |
| 5. | Radiator lower mount | 21. | O-ring |
 37. |
Spacer : Insert it 30 mm (1.1 in.) from the hose end. |
| 6. | Radiator cooling main fan | 22. | Heater inlet hose | 38. | Radiator seal |
| 7. | Radiator cooling sub fan | 23. | Heater outlet hose |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 8. | Radiator cooling main fan motor | 24. | Radiator outlet hose No.1 |
 : |
12 N·m (1.2 kgf-m, 9.0 lbf-ft) |
| 9. | Radiator cooling sub fan motor | 25. | Radiator outlet hose No.2 |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 10. | Radiator cooling fan shroud | 26. | Water inlet pipe No.2 |
 : |
3.9 N·m (0.40 kgf-m, 3.0 lbf-ft) |
| 11. | Reservoir | 27. | Water inlet pipe No.1 |
 : |
6.3 N·m (0.64 kgf-m, 5.0 lbf-ft) |
| 12. | Reservoir hose |
 28. |
Water pump : Apply sealant 99000-31250 referring to Water Pump Removal and Installation:K14C. |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| 13. | Radiator cap | 29. | Water pump pulley |
 : |
Do not reuse. |
| 14. | Filler neck | 30. | To heater core | ||
| 15. | Radiator inlet hose No.1 | 31. | To turbocharger |
