Water Pump / Generator Drive Belt Removal and Installation

1)Disconnect negative (–) cable at battery.

2)Remove engine undercover.

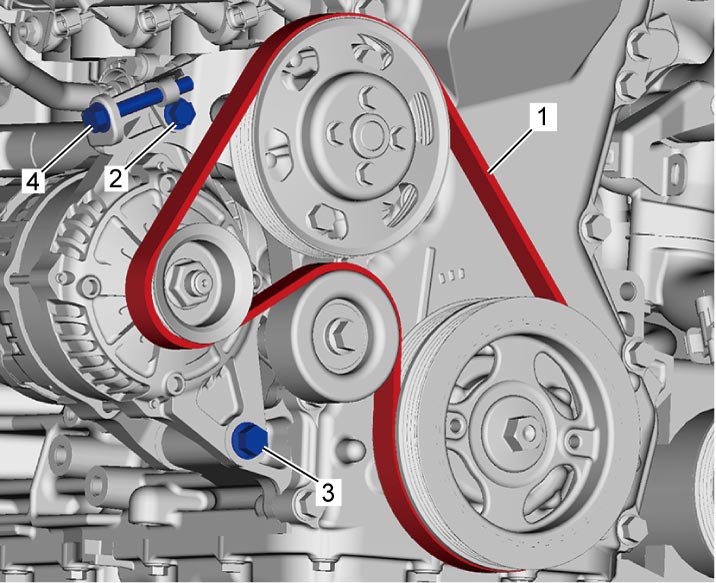

3)Remove compressor drive belt before removing water pump / generator drive belt (1).

4)Loosen generator bolt (2), pivot bolt (3) and adjuster bolt (4), and then remove water pump / generator drive belt.

5)Remove water pump / generator drive belt tensioner pulley if necessary.

1)Install water pump / generator drive belt tensioner pulley, if removed.

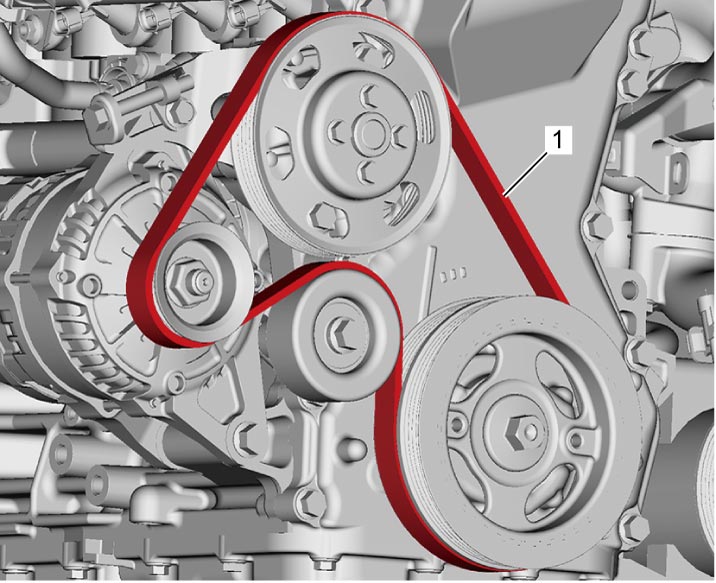

2)Install water pump / generator drive belt (1) as shown in figure.

3)Adjust belt tension.

4)Install compressor drive belt.

5)Install engine undercover.

6)Connect negative (–) cable at battery.
