Water Pump / Generator Drive Belt Tensioner Pulley Removal and Installation

Removal

1)Remove water pump / generator drive belt.

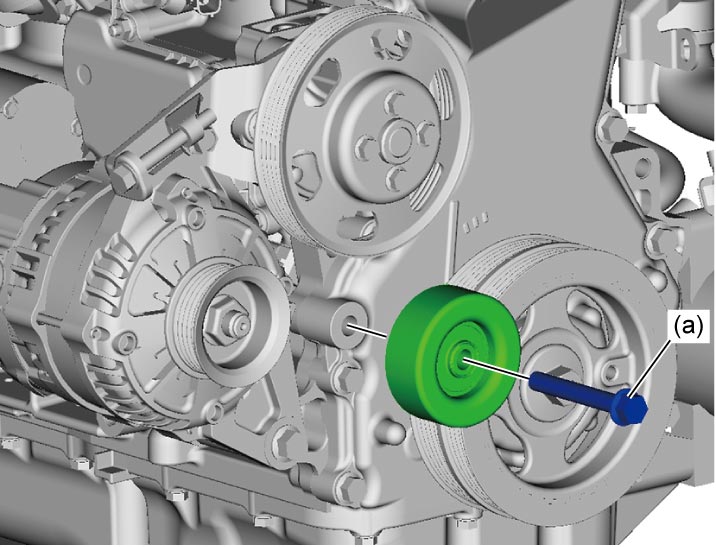

2)Remove water pump / generator drive belt tensioner pulley.

Installation

Reverse removal procedure noting the following points.

•Tighten water pump / generator drive belt tensioner pulley bolt to specified torque.

Tightening torque

Water pump / generator drive belt tensioner pulley bolt (a): 45 N·m (4.6 kgf-m, 33.5 lbf-ft)

•Adjust belt tension.
