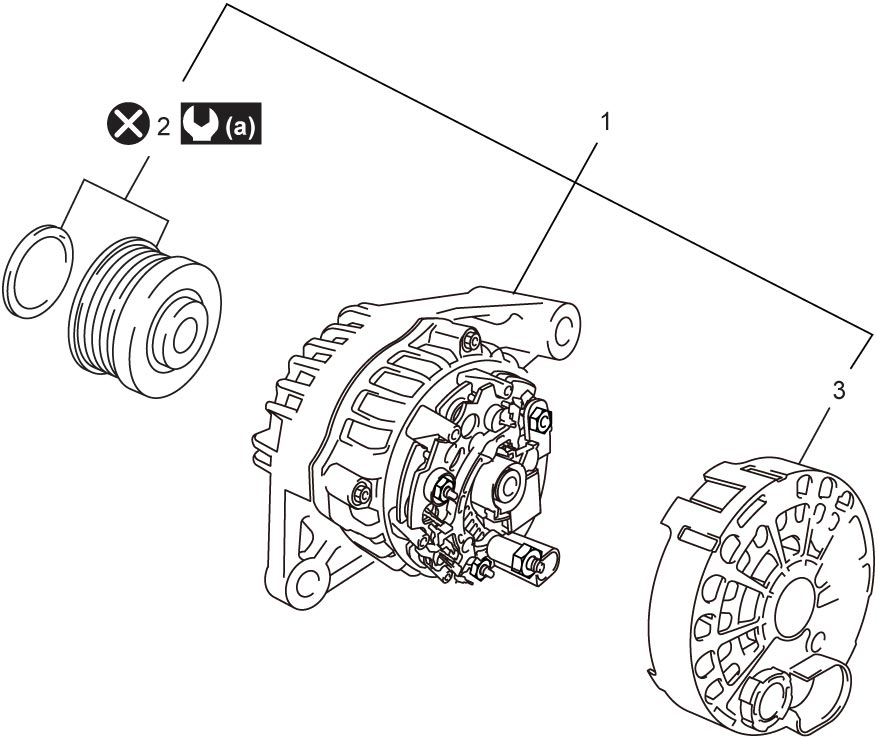

Generator Components

Precautions: Precautions for Handling Battery · Precautions for Replacing Battery · General safety (00)

1.	Generator assembly	3.	Rear end cover	:	Do not reuse.
2.	Pulley	:	80 N·m (8.2 kgf-m, 59.0 lbf-ft)
