Suspension Arm Front Bushing Removal and Installation
Precautions: Precautions for Handling of Front Strut · Precautions for Suspension · General safety (00)
NOTE:
Suspension arm rear bushing is not individually replaceable. Replace suspension arm if the bushing is defective.
Removal

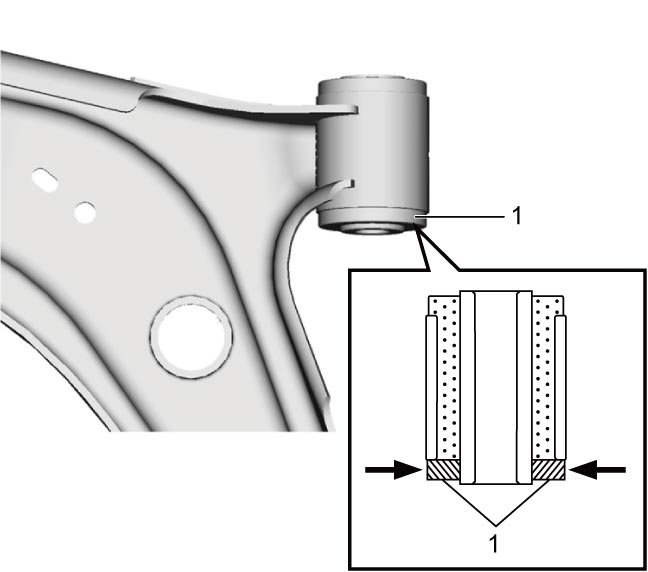

1)Cut off flange of suspension arm front bushing (rubber) (1) using knife.

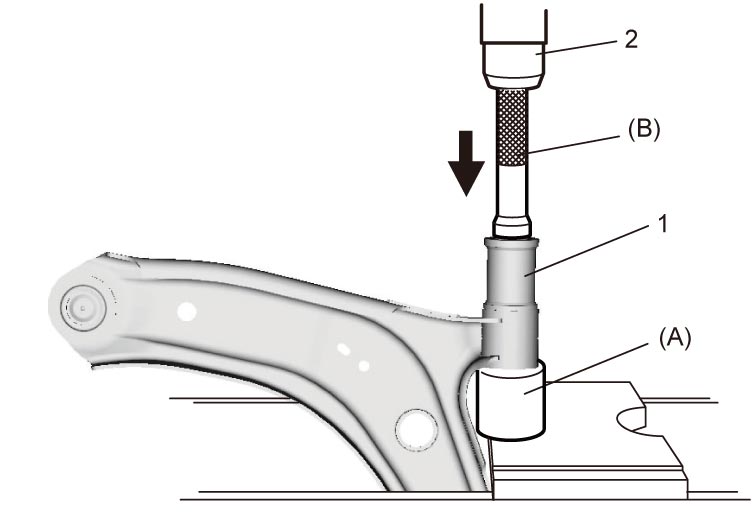

2)Push out suspension arm front bushing (1) using hydraulic press (2) and special tools.
Installation

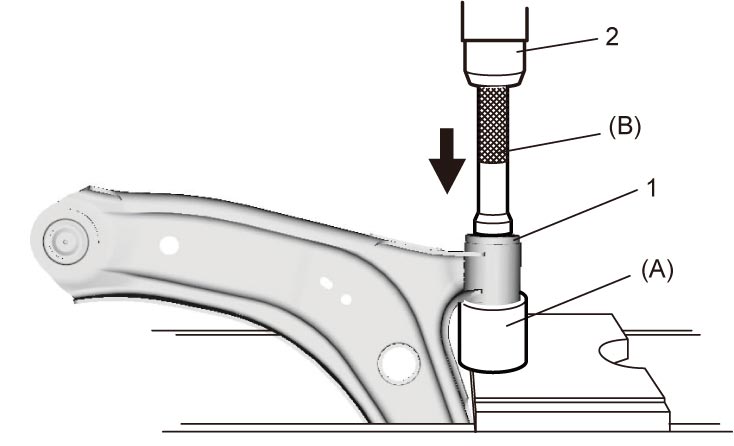

1)Press-fit suspension arm front bushing (1) using special tools and hydraulic press (2).
NOTICE:
Reused bushing will not fit properly.
Always use a new bushing.
NOTE:
Before installing bushing, apply soap water on its circumference to facilitate installation.

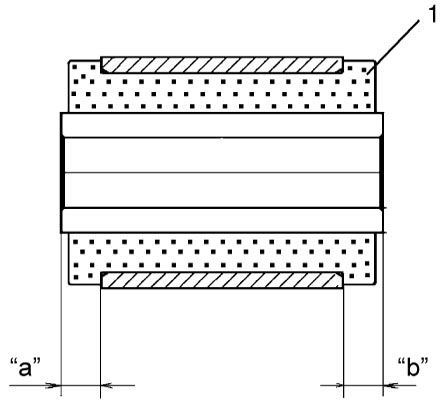

2)Press-fit suspension arm front bushing (1) so that dimensions “a” and “b” in figure become equal.
