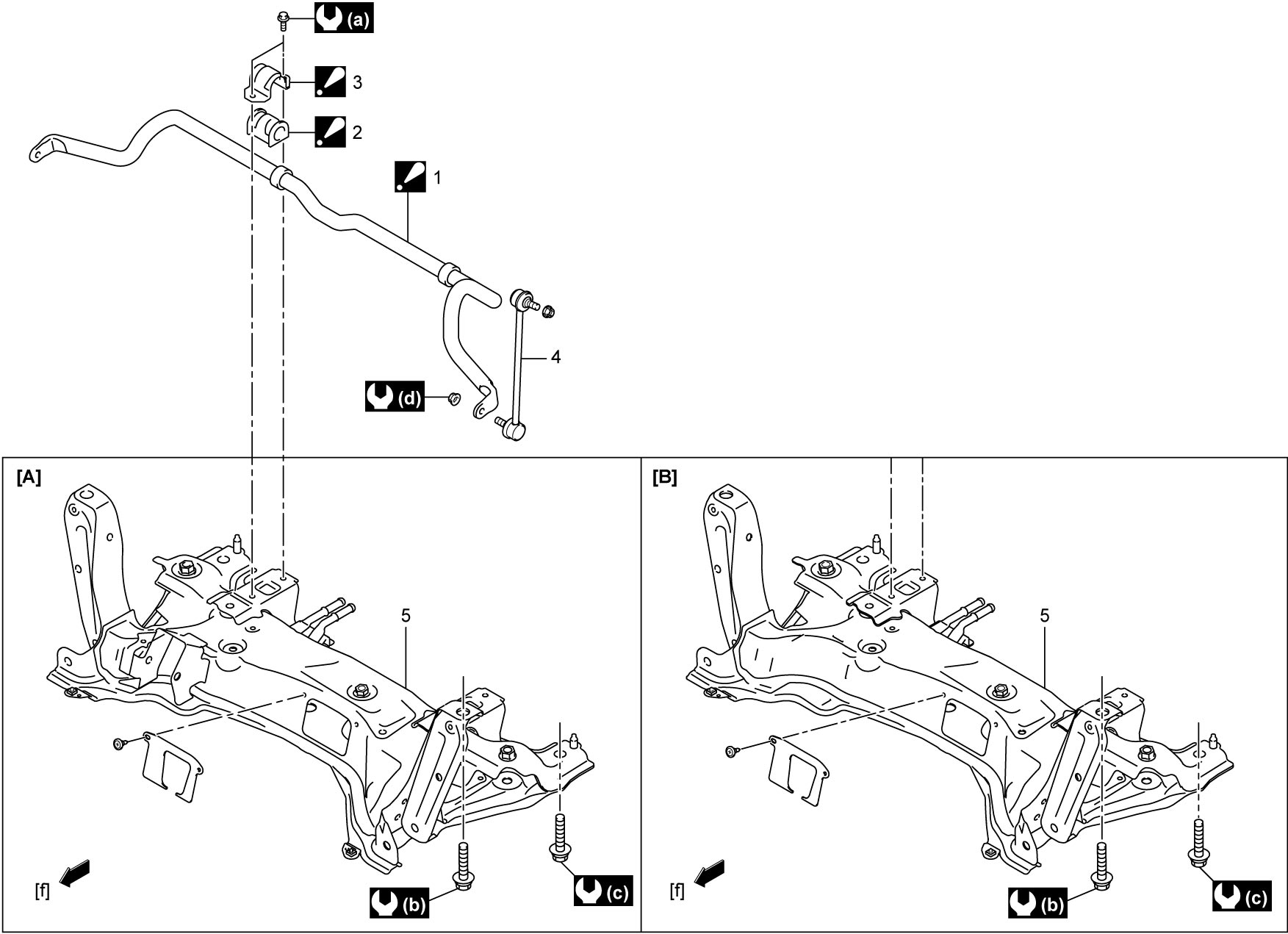

Front Suspension Frame and Stabilizer Bar Components
Precautions: Precautions for Handling of Front Strut · Precautions for Suspension · General safety (00)
| [A]: | D16AA model |
 3. |
Stabilizer mounting bracket : For correct installing direction of stabilizer mounting bracket, refer to Front Suspension Frame, Stabilizer Bar and Bushing Removal and Installation. |
 : |
145 N·m (14.8 kgf-m, 107.0 lbf-ft) |
| [B]: | M16A model | 4. | Stabilizer joint |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| [f]: | Forward | 5. | Front suspension frame |
 : |
Do not reuse. |
|
1. |
Stabilizer bar : For correct installing direction of stabilizer bar, refer to Front Suspension Frame, Stabilizer Bar and Bushing Removal and Installation. |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) | ||
|
2. |
Stabilizer bar bushing : For correct installing direction of stabilizer bar bushing, refer to Front Suspension Frame, Stabilizer Bar and Bushing Removal and Installation. |
 : |
95 N·m (9.7 kgf-m, 70.0 lbf-ft) |
