Stabilizer Bar Bushing Removal and Installation

Precautions: Precautions for Handling of Front Strut · Precautions for Suspension · General safety (00)

Removal

1)Remove exhaust No.1 pipe and exhaust center pipe.

•M16A model:

•K14C model:

•D16AA model:

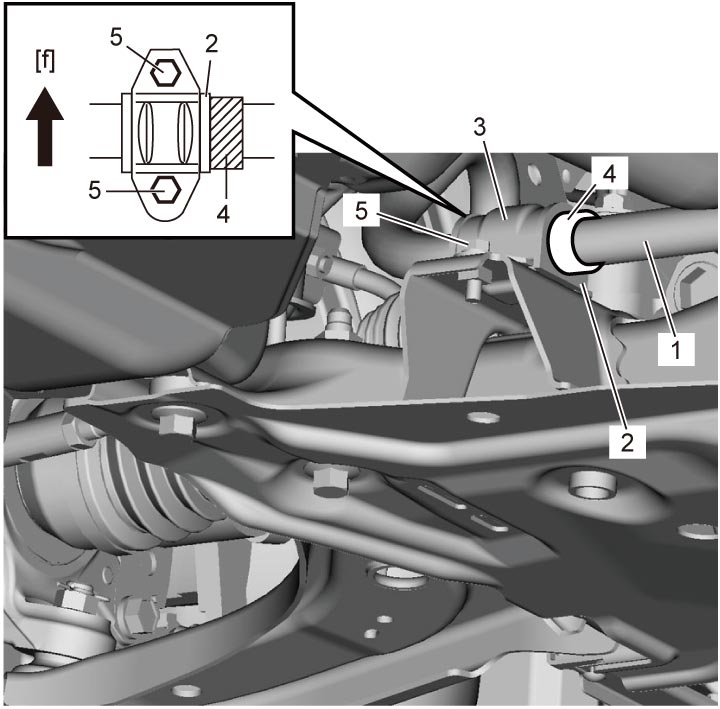

2)Remove stabilizer bar mounting brackets (3) and bolts (5).

3)Remove stabilizer bar bushings (2).

[f]:	Forward	4.	Ring
1.	Stabilizer bar

Installation

Reference: Front Stabilizer Bar, Bushing and Joint Check

Reverse removal procedure noting the following point.

•When installing stabilizer bar bushings and stabilizer bar mounting brackets, refer to Step 1) – 2) of Installation procedure in Front Suspension Frame, Stabilizer Bar and Bushing Removal and Installation.
