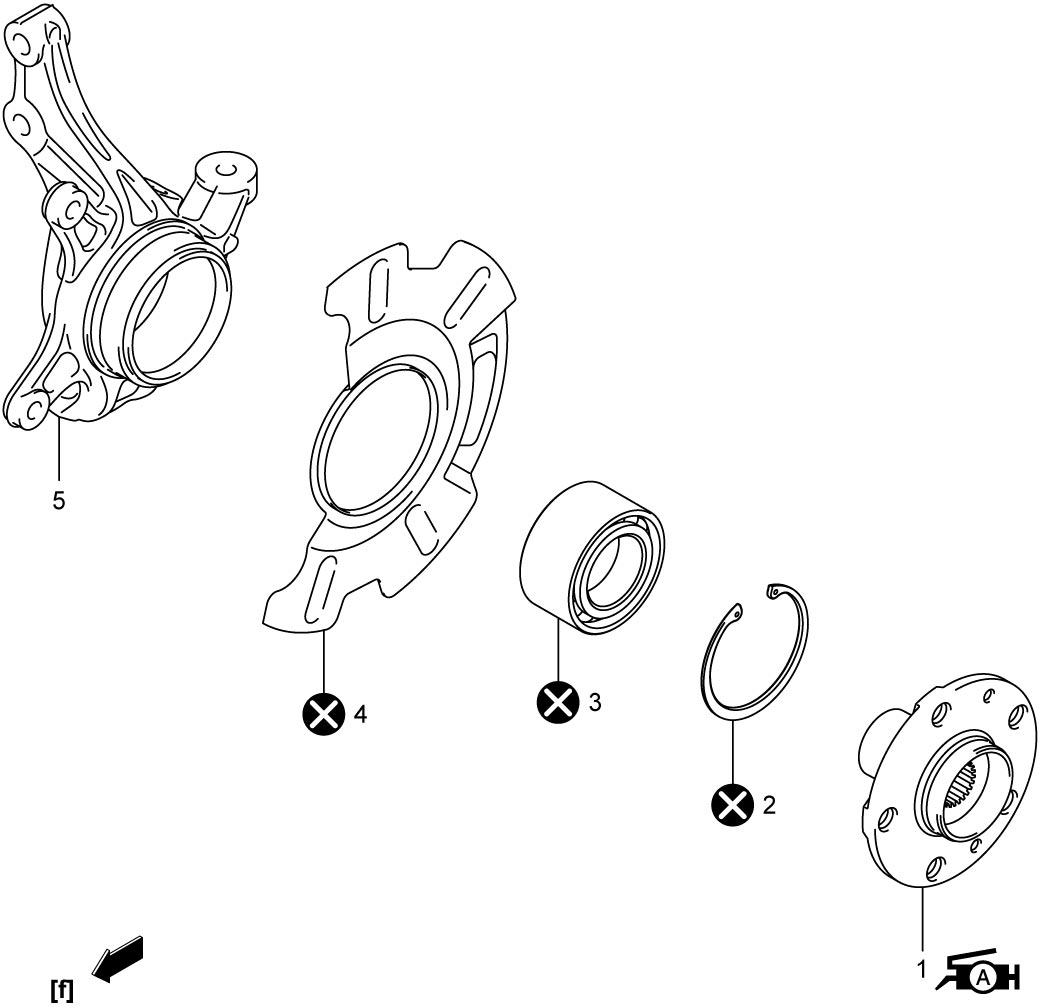

Front Wheel Hub and Steering Knuckle Components
Precautions: General safety (00)
| [f]: | Vehicle front | 4. | Brake disc dust cover |
 1. |
Front wheel hub : Apply grease 99000-25011 to mating surface of front wheel hub and drive shaft.
|
5. | Steering knuckle |
| 2. | Circlip |
 : |
Do not reuse. |
| 3. | Wheel bearing |
