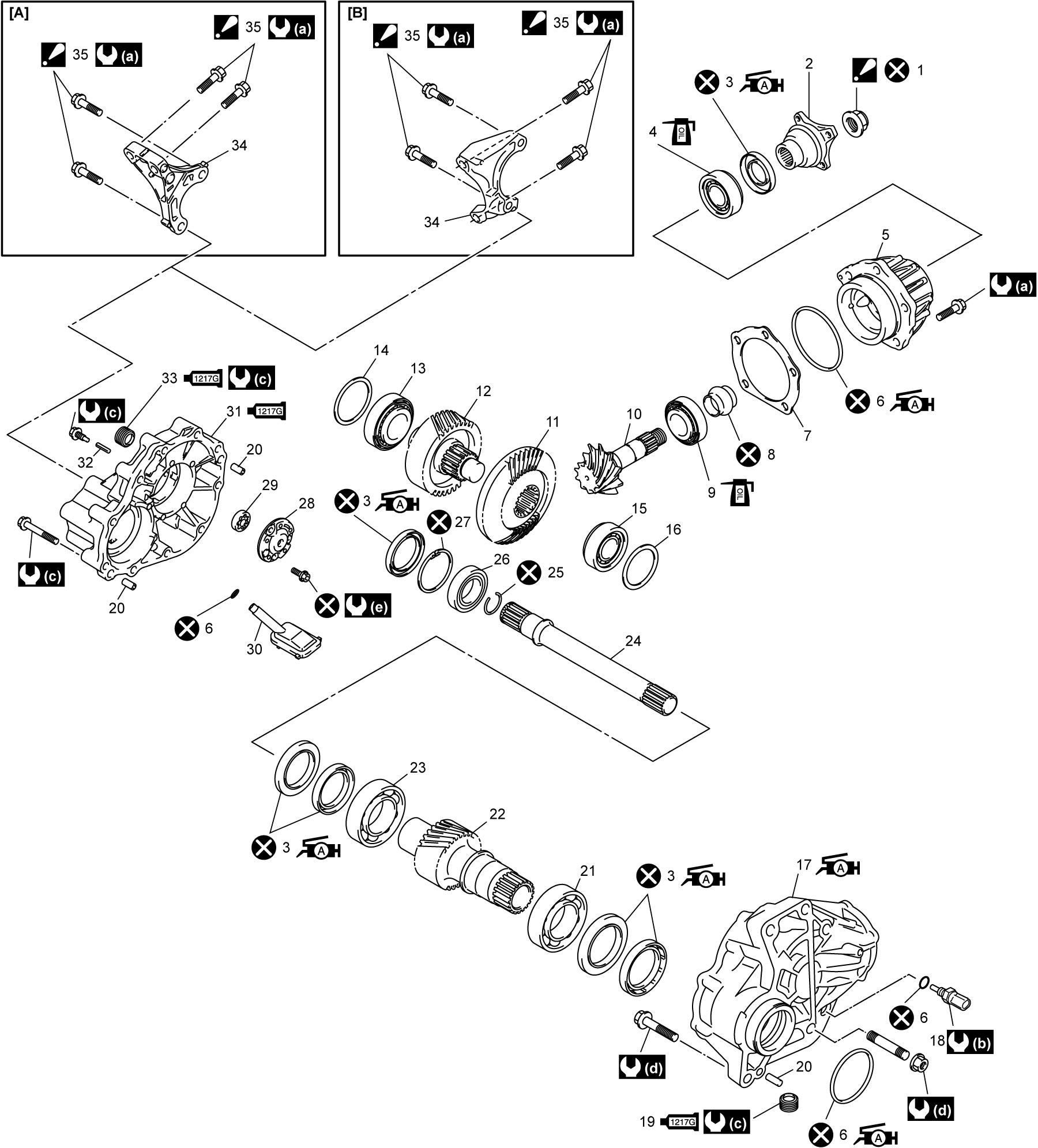

Transfer Assembly Components
Precautions: Precautions for Driveline / Axle · General safety (00)
| [A]: | Petrol model | 14. | Reduction driven gear right shim | 29. | Oil pump rotor assembly |
| [B]: | Diesel model | 15. | Reduction driven gear left taper roller bearing | 30. | Oil strainer |
 1. |
Transfer output flange nut : Tighten transfer output flange nut gradually so as rotational torque of bevel pinion to be in specified value.
|
16. | Reduction driven gear left shim |
 31. |
Transfer right case : Apply sealant 99000-31260 to mating surface of transfer right case. |
| 2. | Transfer output flange |
 17. |
Transfer left case : Refer to Transfer Dismounting and Remounting: for grease application. |
32. | Oil pump drive pin |
|
3. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
18. | Transfer oil temperature sensor |
33. |
Oil level / filler plug : Apply sealant 99000-31260 to thread part. |
| 4. | Pinion shaft rear taper roller bearing |
19. |
Oil drain plug : Apply sealant 99000-31260 to thread part. |
34. | Transfer stiffener |
| 5. | Transfer output retainer | 20. | Dowel pin |
35. |
Transfer stiffener bolt : For tightening order, refer to Transfer Dismounting and Remounting. |
|
6. |
O-ring : Apply grease 99000-25011 to all around surface. |
21. | Reduction drive gear left bearing |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 7. | Transfer output retainer shim | 22. | Reduction drive gear |
 : |
12 N·m (1.2 kgf-m, 9.0 lbf-ft) |
| 8. | Spacer | 23. | Reduction drive gear right bearing |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 9. | Pinion shaft front taper roller bearing | 24. | Transfer intermediate shaft |
 : |
88 N·m (9.0 kgf-m, 65.0 lbf-ft) |
| 10. | Bevel pinion | 25. | Snap ring |
 : |
8.0 N·m (0.82 kgf-m, 6.0 lbf-ft) |
| 11. | Bevel gear | 26. | Transfer intermediate shaft bearing |
 : |
Apply transfer oil. |
| 12. | Reduction driven gear | 27. | Circlip |
 : |
Do not reuse. |
| 13. | Reduction driven gear right taper roller bearing | 28. | Oil pump outer cover |
