ESP® Component Location
Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)
NOTE:

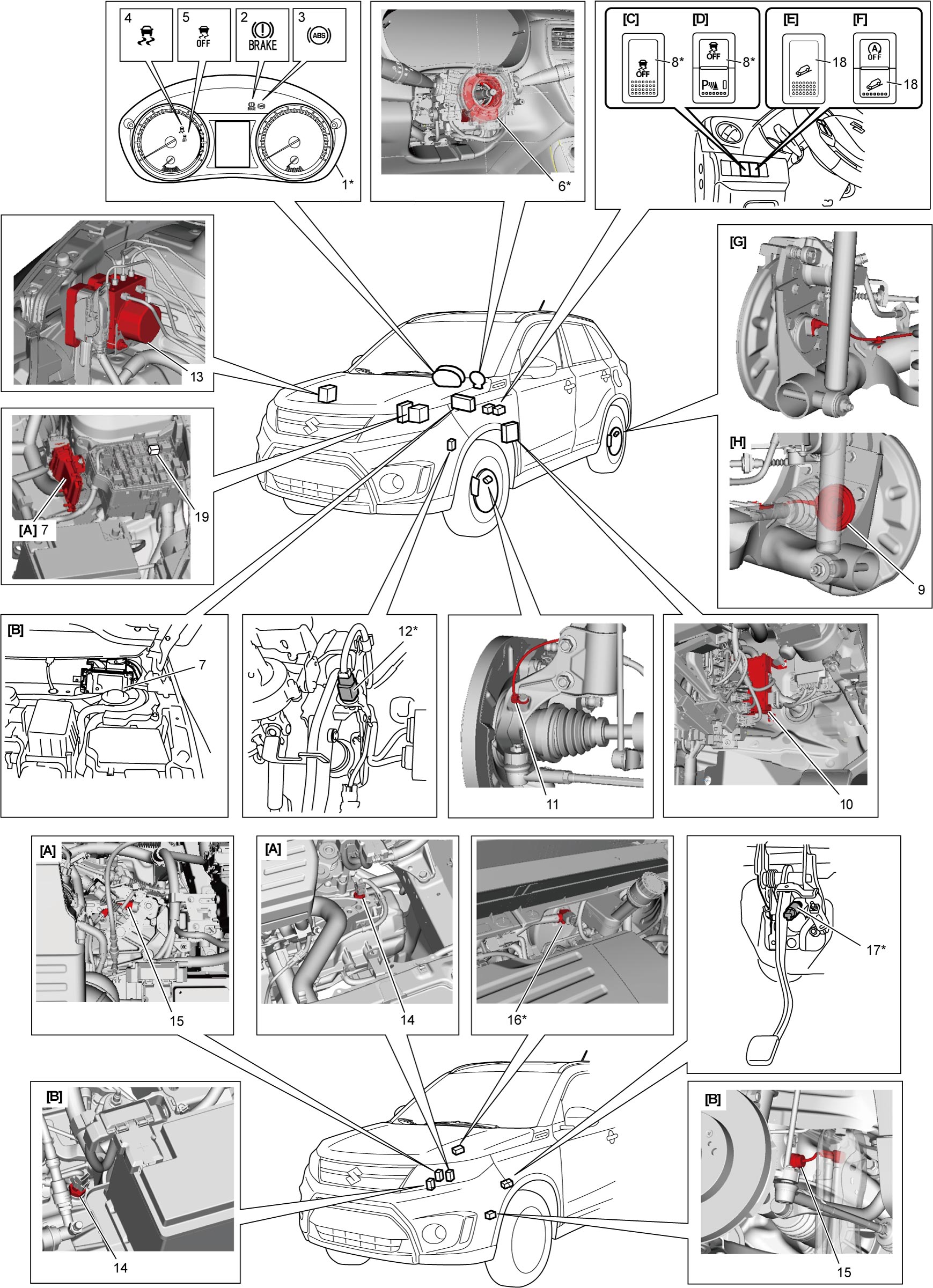

The figure shows component locations LHD. For RHD, numbers with (*) are installed on the opposite side.
| [A]: | Petrol engine model | 2. | EBD warning light (brake warning light) | 11. | Front wheel speed sensor |
| [B]: | Diesel engine model | 3. | ABS warning light | 12. | Brake light switch |
| [C]: | Without parking sensor OFF switch | 4. | ESP® warning light | 13. | ESP® hydraulic unit / control module assembly |
| [D]: | With parking sensor OFF switch | 5. | ESP® OFF light | 14. | Back up light switch (if equipped) |
| [E]: | Without ENG A-STOP OFF switch | 6. | Steering angle sensor | 15. | Neutral position switch (if equipped) |
| [F]: | With ENG A-STOP OFF switch | 7. | ECM | 16. | Brake booster pressure sensor (if equipped) |
| [G]: | 2WD model | 8. | ESP® OFF switch | 17. | CPP No.2 switch (if equipped) |
| [H]: | 4WD model | 9. | Rear wheel speed sensor | 18. | Hill descent control switch (if equipped) |
| 1. | Combination meter | 10. | BCM | 19. | Brake light relay (if equipped) |
