DTC C1027
Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
C1027: ESP® OFF Switch Failure ESP® OFF switch remains “ON” for more than specified time. |
•ESP® OFF switch
•ESP® OFF switch circuit •ESP® control module |

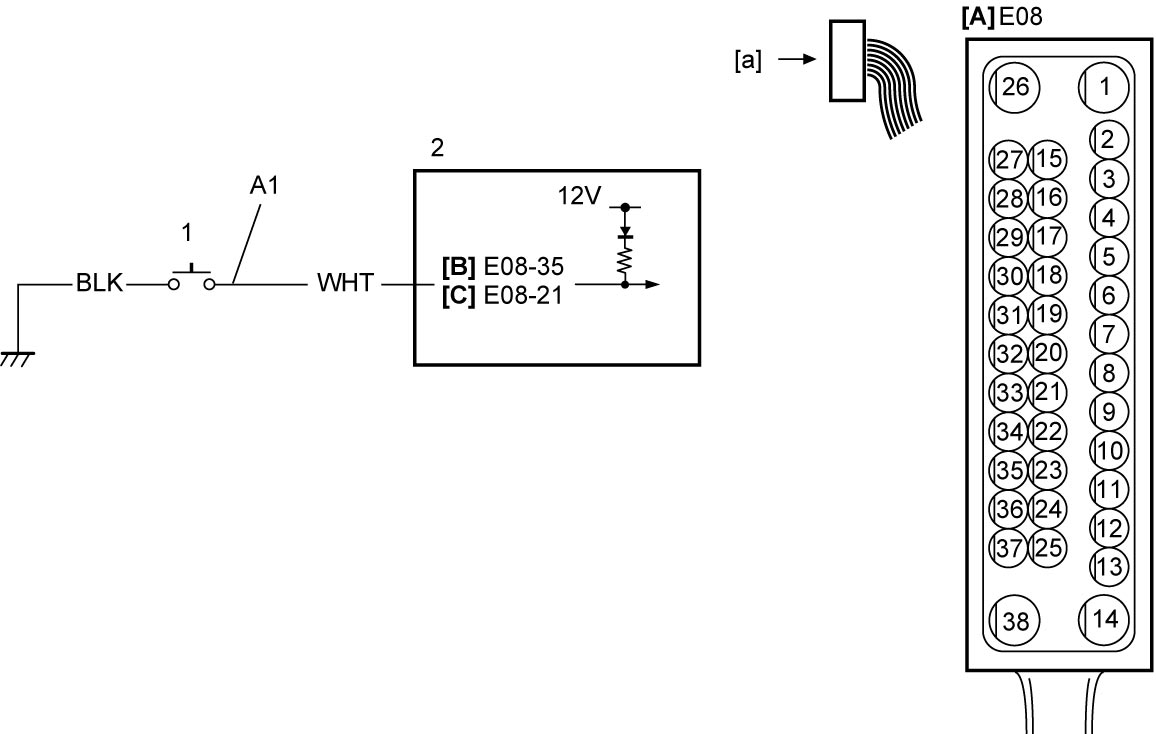

Circuit Diagram
| [A]: | ESP® control module connector (View: [a]) | [C]: | Without parking sensor system | 1. | ESP® OFF switch |
| [B]: | With parking sensor system | A1: | ESP® OFF switch signal circuit | 2. | ESP® control module |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “ESP® System Check” performed?
|
Go to Step 2.
|
Go to ESP® System Check.
|
| 2 |
ESP® OFF switch check
1)Check that ignition is “OFF”.
2)Remove ESP® OFF switch.
3)Check each terminal of ESP® OFF switch for proper connection.
4)If connections are OK, check ESP® OFF switch.
Is check result OK?
|
Go to Step 3.
|
Replace ESP® OFF switch.
|
| 3 |
ESP® OFF switch circuit check
1)Disconnect “E08” connector.
2)Check for proper connection to “E08” connector.
3)If connection is OK, check resistance between the following terminals and ground.
•With parking sensor system: Between “E08-35” and ground
•Without parking sensor system: Between “E08-21” and ground Is resistance infinity?
|
Replace ESP® hydraulic unit / control module assembly and recheck DTC.
|
Repair or replace “A1” circuit.
|
