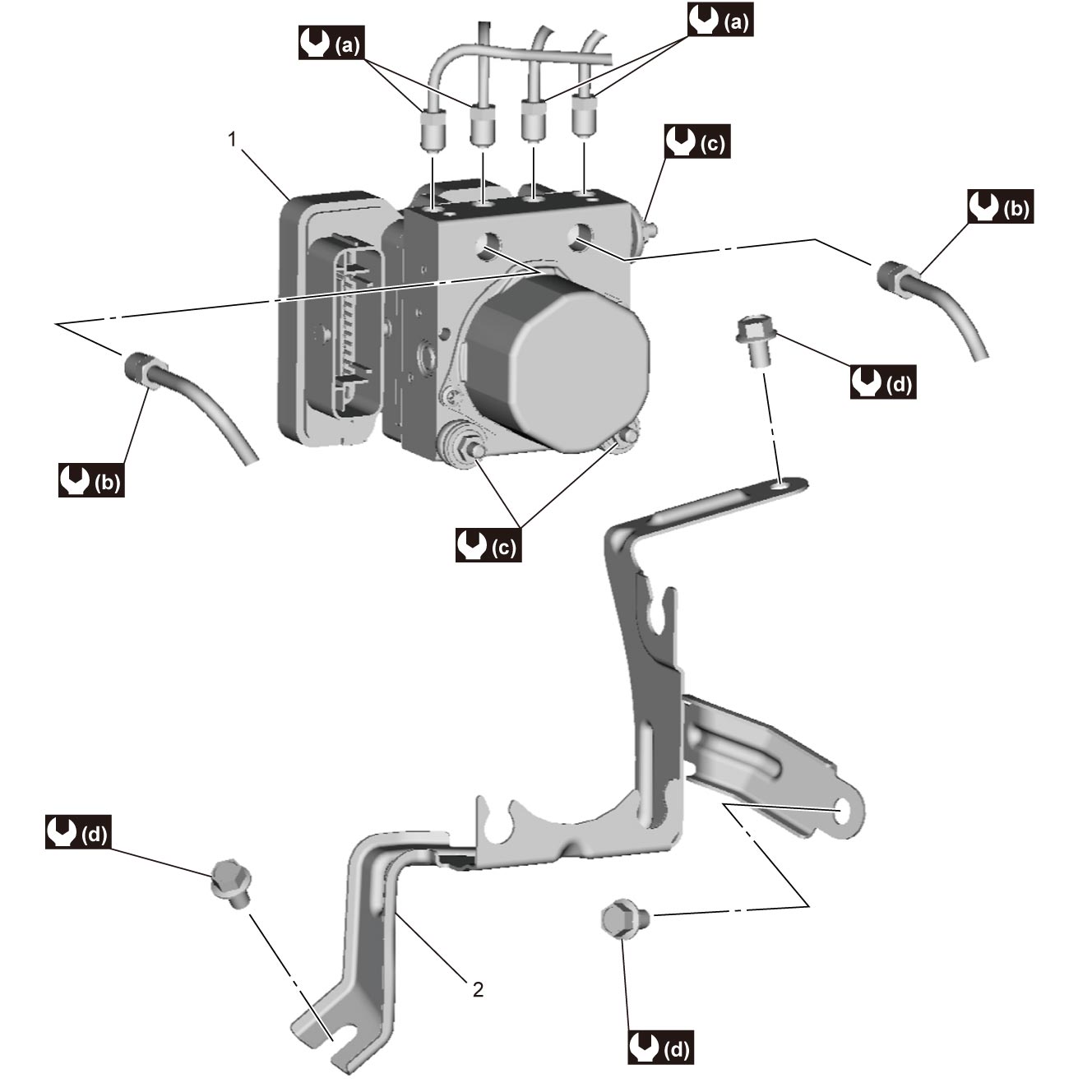

ESP® Hydraulic Unit / Control Module Assembly Components
Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)
| 1. | ESP® hydraulic unit / control module assembly |
 : |
16 N·m (1.6 kgf-m, 12.0 lbf-ft) |
 : |
9.0 N·m (0.92 kgf-m, 7.0 lbf-ft) |
| 2. | Actuator bracket |
 : |
19 N·m (1.9 kgf-m, 14.0 lbf-ft) |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
