ESP® Hydraulic Unit / Control Module Assembly On-Vehicle Inspection
Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)

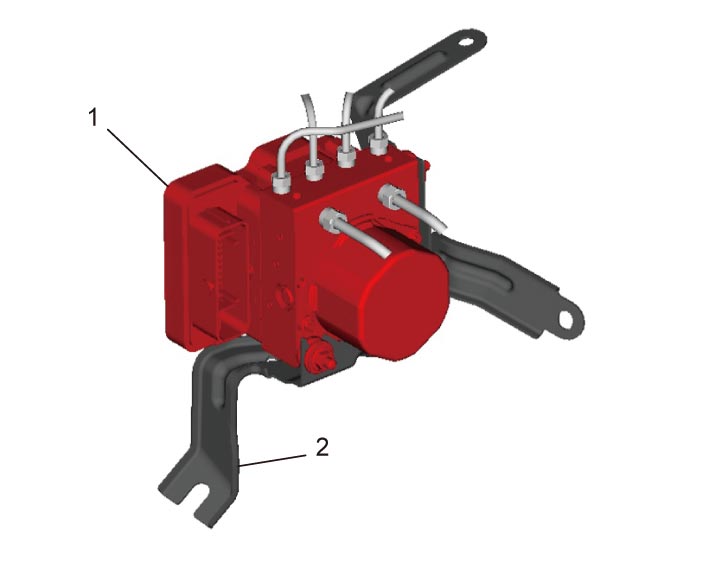

•Check ESP® hydraulic unit / control module assembly (1) for dents, crack, deformation and leakage.
•Check actuator bracket (2) and its mounting surface for dents, crack and deformation.
•Check ESP® hydraulic unit / control module assembly nuts and actuator bracket bolts for looseness.
•Check ESP® control module connector (ESP® control module side and harness side) and its connector lock mechanism for damage or crack.
•Check connector terminals for bend, corrosion or rust.
•Check actuator bracket (2) and its mounting surface for dents, crack and deformation.
•Check ESP® hydraulic unit / control module assembly nuts and actuator bracket bolts for looseness.
•Check ESP® control module connector (ESP® control module side and harness side) and its connector lock mechanism for damage or crack.
•Check connector terminals for bend, corrosion or rust.
Repair or replace defective parts.
