Hill Descent Control Switch Inspection
Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)

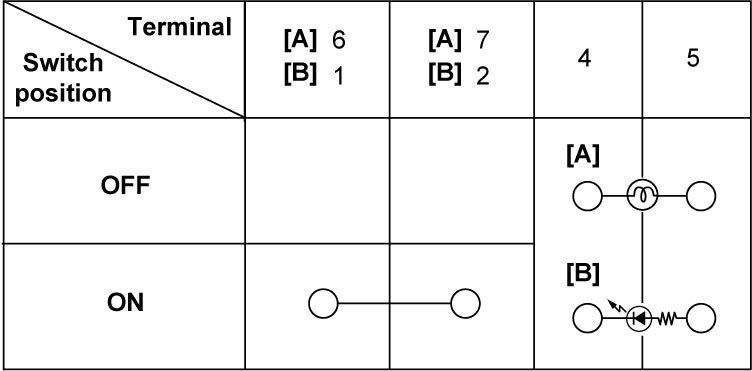

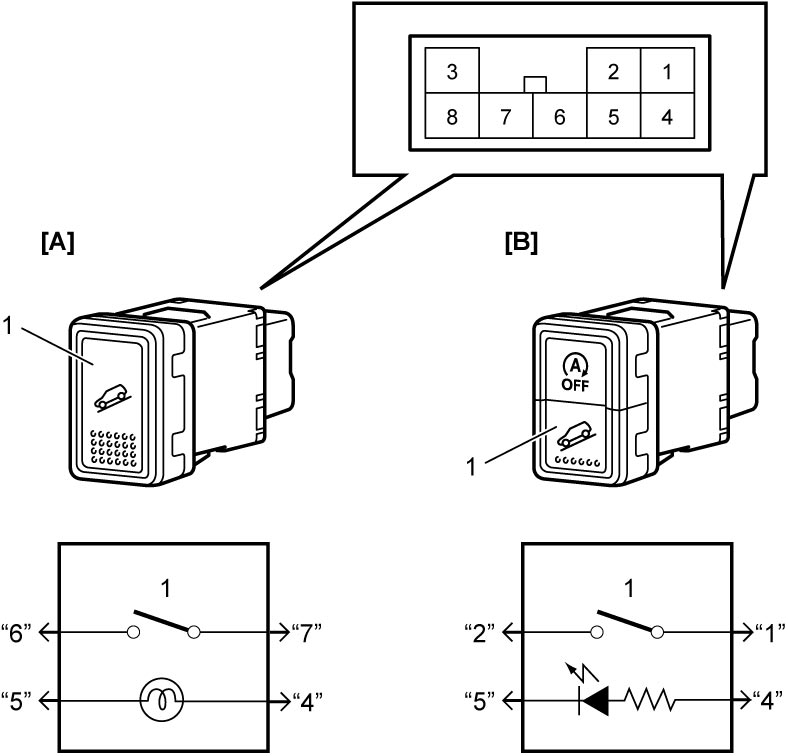

Check hill descent control switch (1) for continuity between terminals at each switch position.
If check result is not as specified, replace hill descent control switch.
NOTE:
For checking diode circuit, select diode range of circuit tester.
| [A]: | Without ENG A-STOP OFF switch |
| [B]: | With ENG A-STOP OFF switch |
