Suzuki Vitara (LY) 2016-2017 · Service Manual Repair Instructions

Hill Descent Control Switch Removal and Installation

Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)

Removal
1)Remove switch bezel. icon
2)Disconnect hill descent control switch connector.

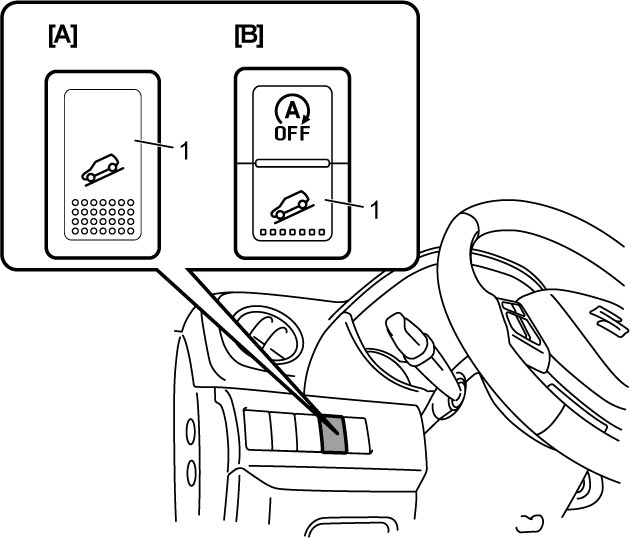

3)Remove hill descent control switch (1) from switch bezel.
[A]: Without ENG A-STOP OFF switch
[B]: With ENG A-STOP OFF switch
Installation
Reverse removal procedure.
