Electronic Shift Control System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

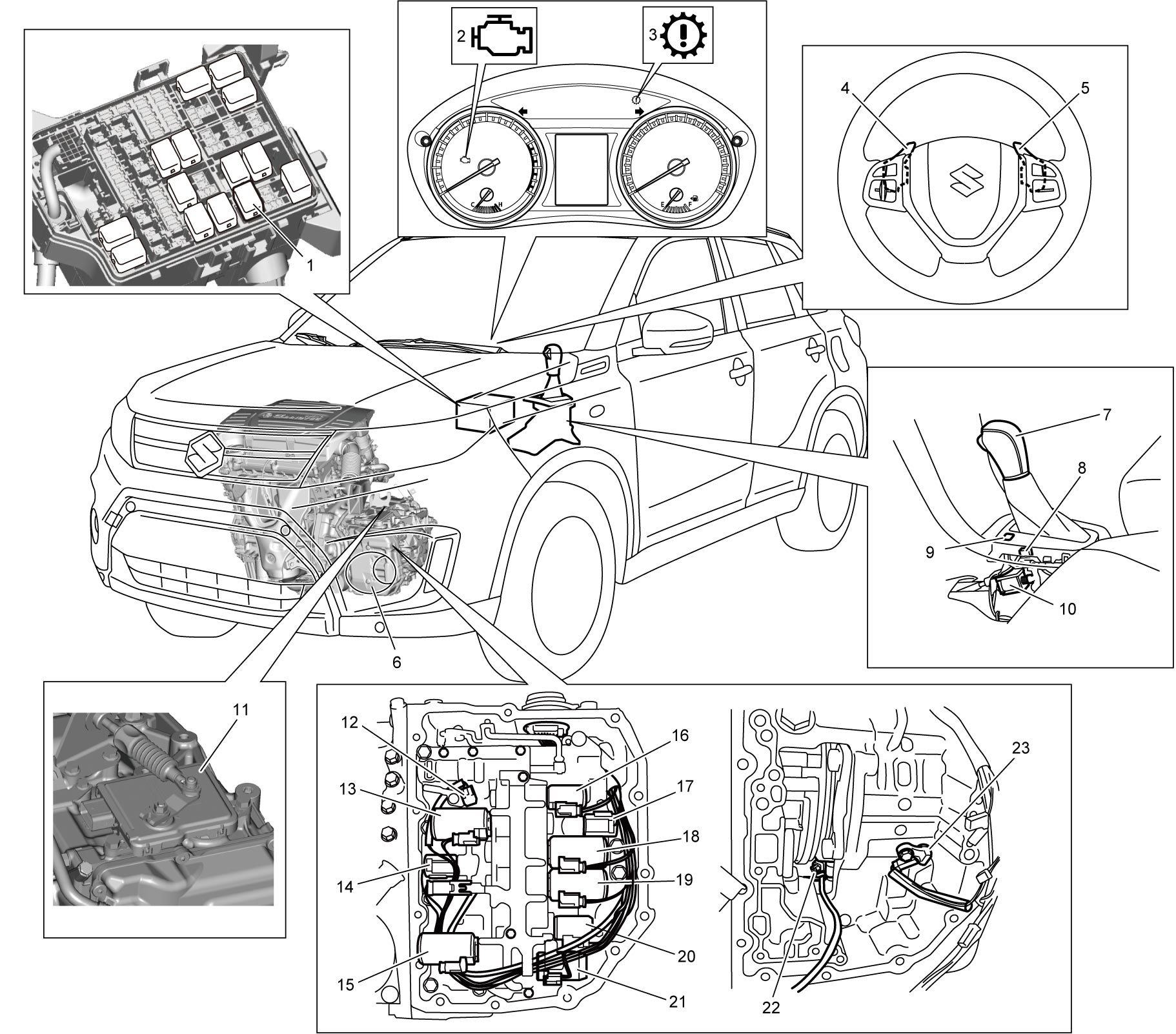

| 1. | Back up light relay | 9. | Shift lock solenoid release plate | 17. | Shift solenoid valve “B” |
| 2. | Transmission warning light | 10. | Shift lock solenoid | 18. | Pressure control solenoid valve “B” |
| 3. | MIL | 11. | TCM | 19. | Pressure control solenoid valve “D” |
| 4. | Paddle-down switch | 12. | ATF temperature sensor (Solenoid harness) | 20. | Line pressure control solenoid valve |
| 5. | Paddle-up switch | 13. | Pressure control solenoid valve “A” | 21. | Electro magnetic oil pump solenoid valve (ENG A-STOP model) |
| 6. | A/T | 14. | Shift solenoid valve “A” | 22. | Output shaft speed sensor |
| 7. | Select lever | 15. | Pressure control solenoid valve “C” | 23. | Input shaft speed sensor |
| 8. | P position switch | 16. | TCC solenoid valve |
