DTC P0562 / P0563 / P1742 / P1743

DTC Detecting Condition and Trouble Area

DTC detecting condition	Trouble area
P0562: System Voltage Low Main power supply circuit voltage is lower than specified value for 20 sec. (1 D/C detection logic)	•TCM power supply circuit and/or ground circuit •Charging system •TCM
P0563: System Voltage High Main power supply circuit voltage is higher than specified value for 60 sec. (1 D/C detection logic)
P1742: Auxiliary Transmission Fluid Pump Supply Voltage Low Main power supply circuit voltage is lower than 9 V for 5 sec. (1 D/C detection logic)
P1743: Auxiliary Transmission Fluid Pump Supply Voltage High Main power supply circuit voltage is higher than 16 V for 5 sec. (1 D/C detection logic)

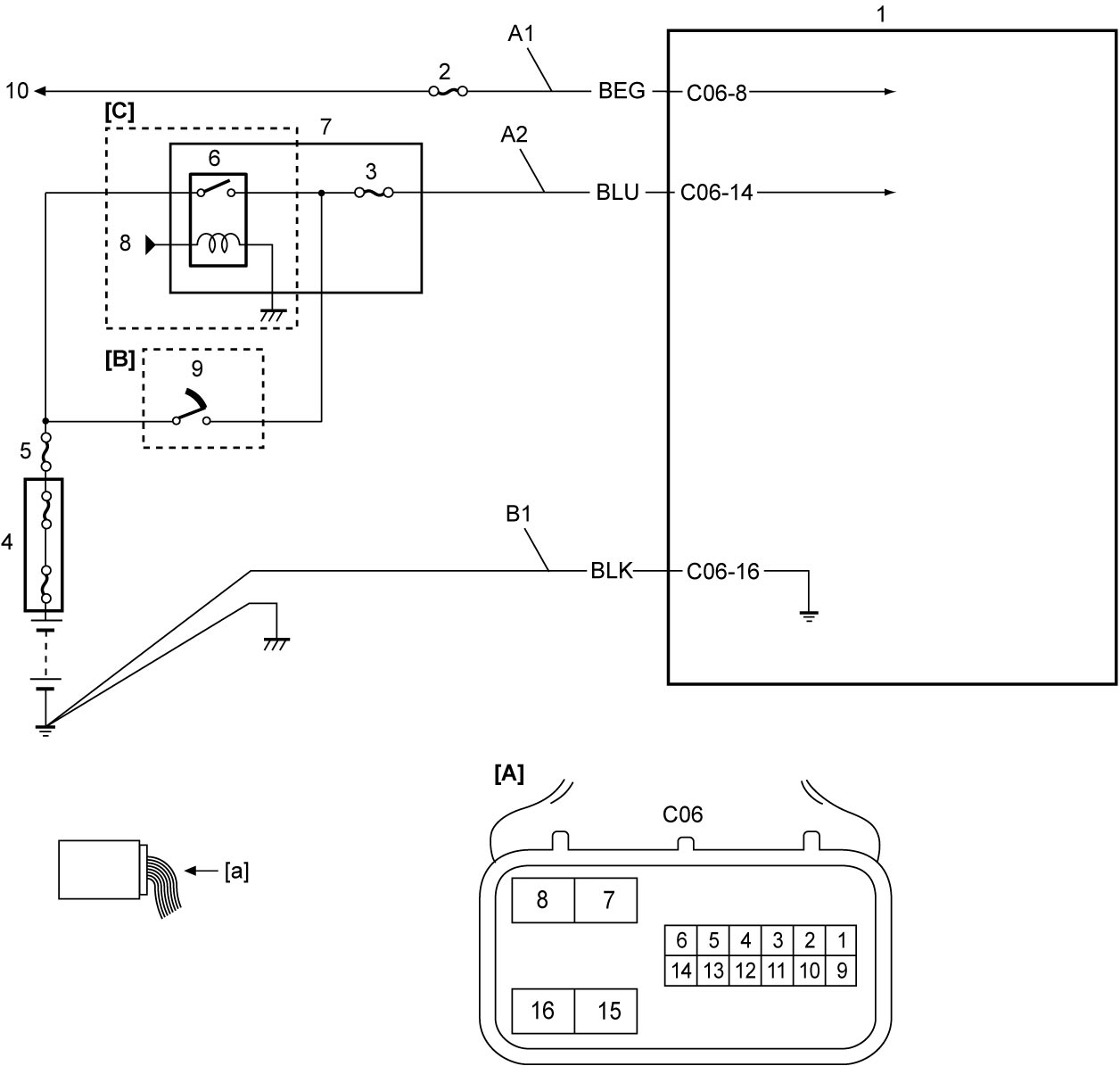

Circuit Diagram

[A]:	TCM connector (View: [a])	1.	TCM	7.	J/B
[B]:	Ignition switch model	2.	“T/M5” fuse (ENG A-STOP model) or “T/M1” fuse (Non-ENG A-STOP model)	8.	To keyless start control module
[C]:	Keyless push start model	3.	“IG1 SIG” fuse	9.	Ignition switch
A1:	Main power supply circuit	4.	Main fuse box	10.	To DC/DC converter (ENG A-STOP model) or battery (Non-ENG A-STOP model)
A2:	Ignition power supply circuit	5.	“IGN” fuse
B1:	TCM ground circuit	6.	IG1 relay

DTC Confirmation Procedure

NOTE:

Check that the following condition is met in this “DTC Confirmation Procedure”.

•DTC U0073 or U0100 is not detected.

1)Start engine at idle for 3 minute.

DTC Troubleshooting

Step	Action	Yes	No
1	Was “A/T Control System Check” performed?	Go to Step 2.	Go to A/T Control System Check.
2	TCM power supply circuit and ground circuit check 1)Check TCM power supply and ground circuits. Is check result OK?	Go to Step 3.	Repair or replace defective wire harness.
3	TCM power supply voltage check 1)Check power supply voltage under the following conditions. •Ignition “ON” •Engine running at 3,000 rpm Is voltage 10 to 15 V?	Substitute a known-good TCM and recheck DTC.	Check charging system. •M16A model: •K14C model:
