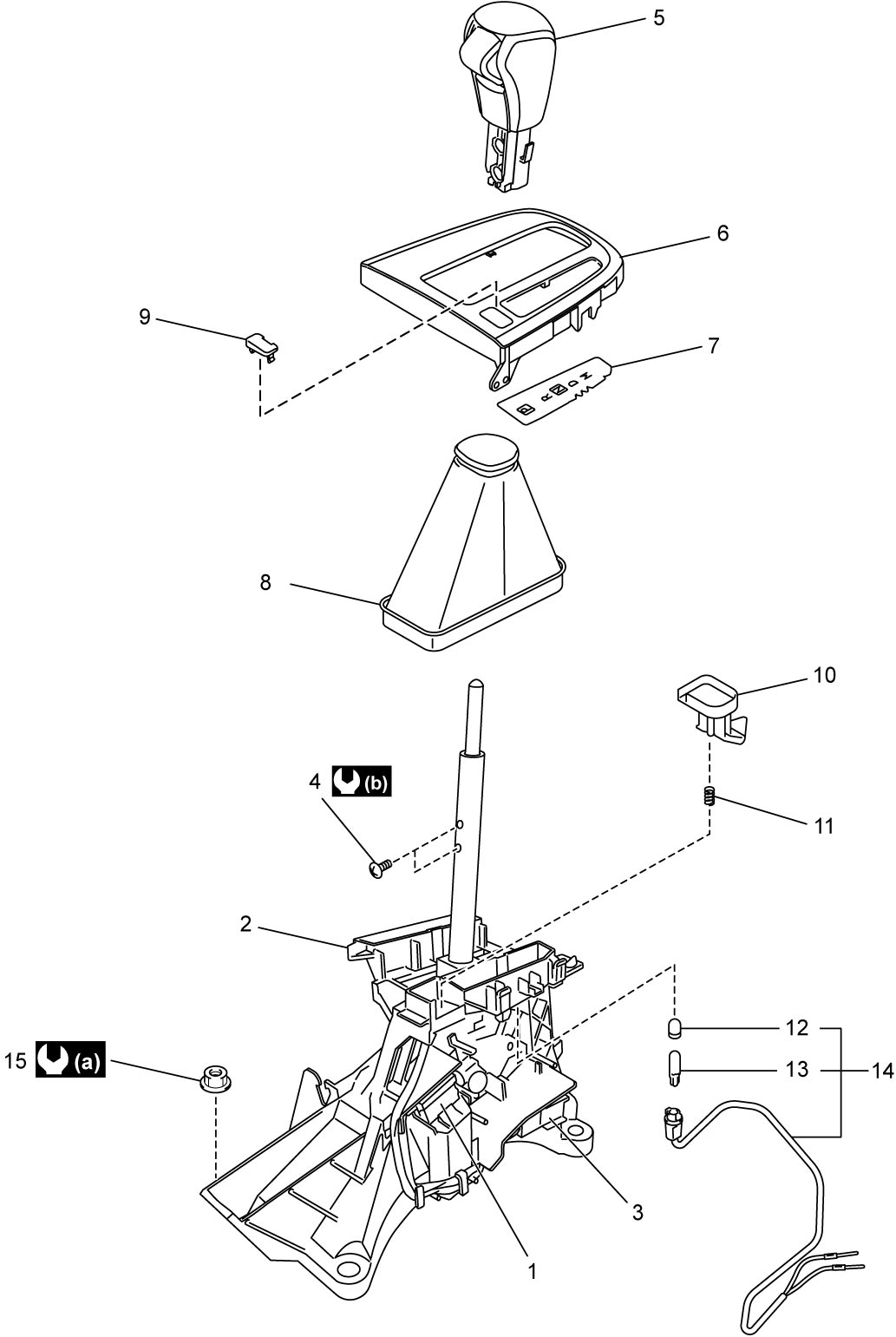

Select Lever Assembly Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Shift lock solenoid | 7. | Select position plate | 13. | Bulb |
| 2. | Select lever | 8. | Select lever boot | 14. | Select lever illumination light assembly |
| 3. | Select lever connector | 9. | Cap (LHD model) | 15. | Select lever nut |
| 4. | Select lever knob screw | 10. | Shift lock solenoid release plate |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 5. | Select lever knob assembly | 11. | Spring |
 : |
1.3 N·m (0.13 kgf-m, 1.0 lbf-ft) |
| 6. | Select lever indicator | 12. | Bulb filter |
