P Position Switch Inspection (Keyless Push Start Model)
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
1)Remove floor console front cover.

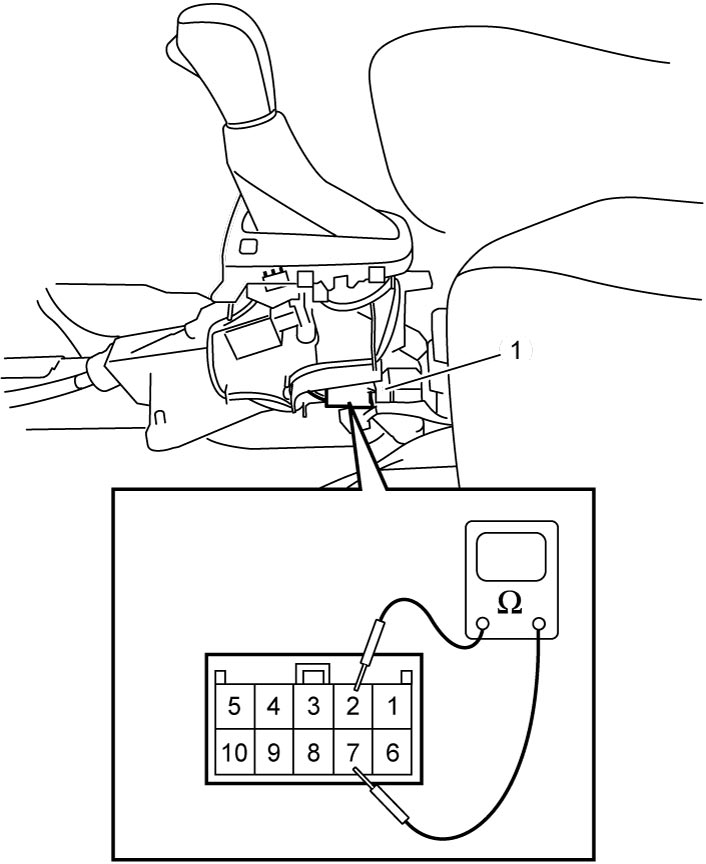

2)Disconnect select lever connector (1).
3)Check for continuity between terminals “2” and “7” of select lever connector. If check result is not as specified, replace select lever assembly.
P position switch specification
| Condition | Specification |
|---|---|
| P range and select lever is released | Continuity |
| Other than P range | No continuity |

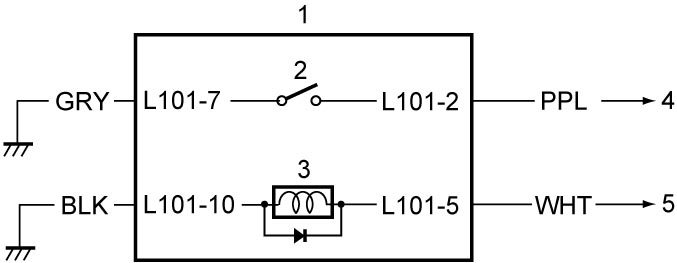

Select lever circuit
| 2. | P position switch | 4. | To keyless start control module |
| 3. | Shift lock solenoid | 5. | To BCM |
