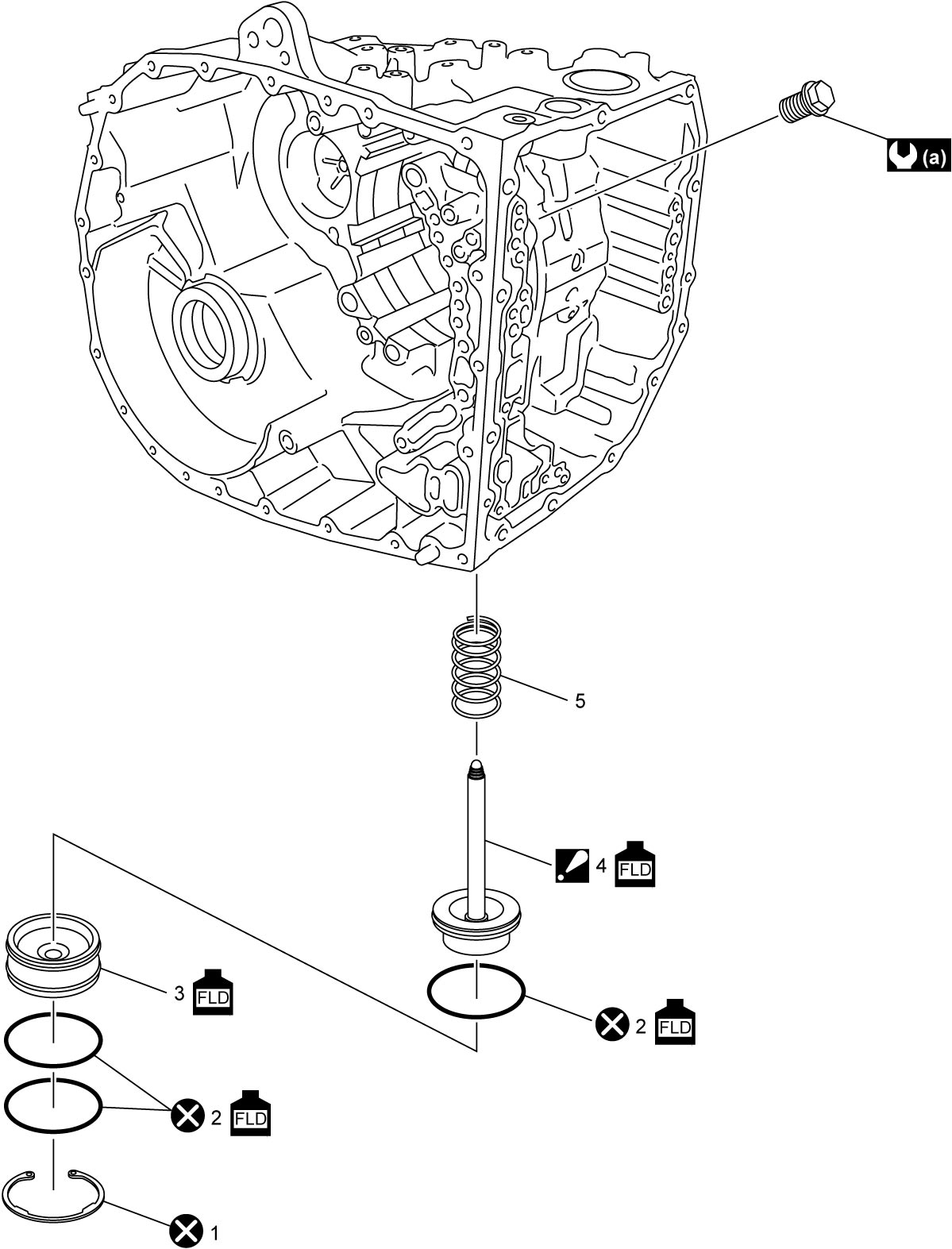

B1 Brake Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | B1 brake piston cover snap ring |
 4. |
B1 brake piston : For adjustment of B1 brake piston rod, refer to B1 Brake Piston Rod Adjustment. |
 : |
Apply ATF. |
| 2. | O-ring | 5. | B1 brake piston spring |
 : |
Do not reuse. |
| 3. | B1 brake piston cover |
 : |
167 N·m (17.0 kgf-m, 123.5 lbf-ft) |
