1st and Reverse Brake Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

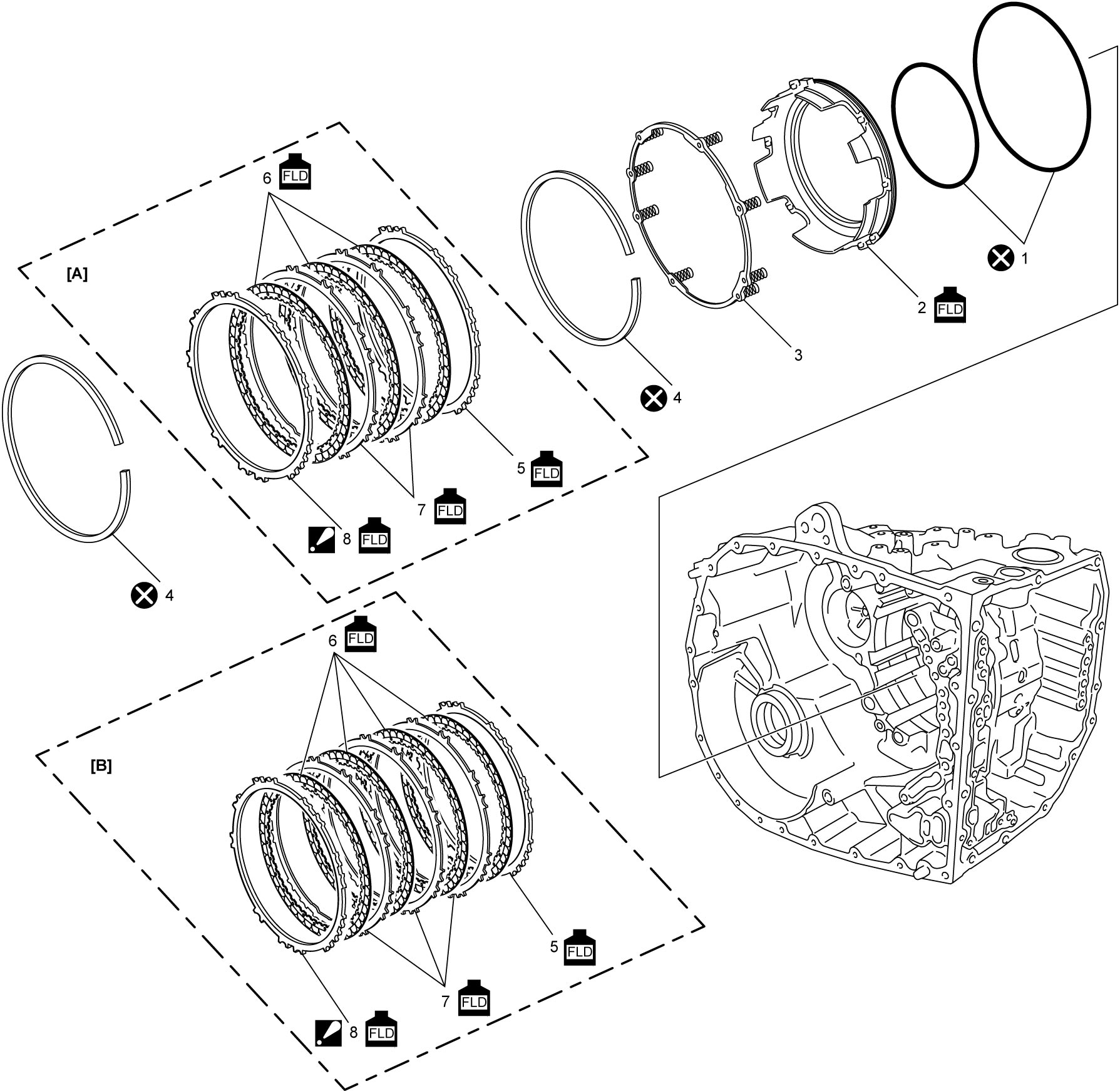

| [A]: | M16A model | 4. | 1st and reverse brake snap ring No.1 | 9. | 1st and reverse brake snap ring No.2 |
| [B]: | K14C model | 5. | 1st and reverse brake retaining plate No.1 (4.0 mm (0.16 in.)) |
 : |
Apply ATF. |
| 1. | O-ring | 6. | 1st and reverse brake disc |
 : |
Do not reuse. |
| 2. | 1st and reverse brake piston | 7. | 1st and reverse brake separator plate | ||
| 3. | 1st and reverse brake return spring |
 8. |
1st and reverse brake retaining plate No.2 : For adjustment of 1st and reverse brake piston stroke, refer to 1st and Reverse Brake Piston Stroke Inspection and Adjustment. |
