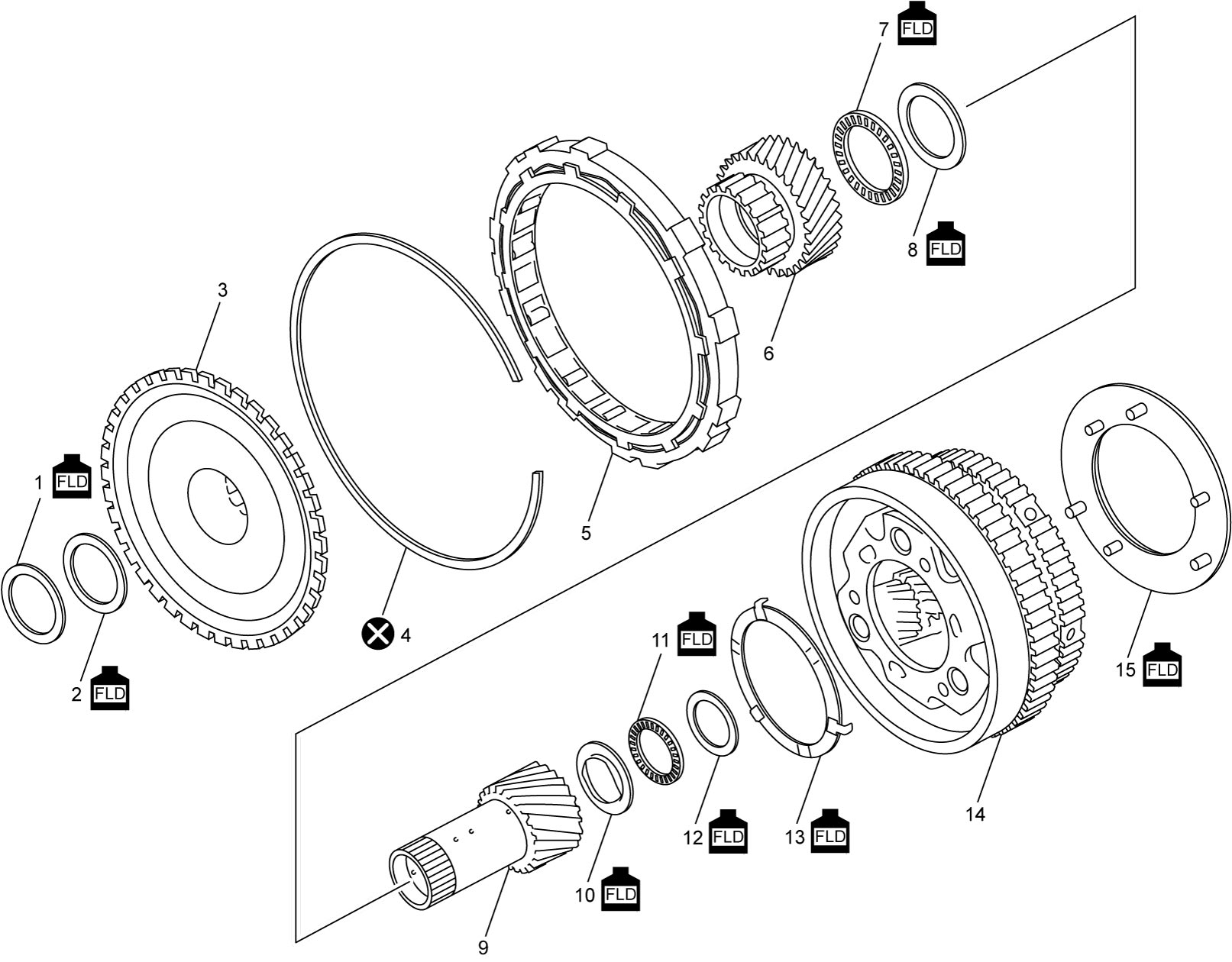

Rear Planetary Gear Assembly and One-Way Clutch Assembly Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Rear planetary sun gear input drum thrust bearing | 10. | Rear planetary sun gear No.2 thrust bearing race No.1 |
| 2. | Rear planetary sun gear input drum thrust washer | 11. | Rear planetary sun gear No.2 thrust bearing |
| 3. | Rear planetary sun gear input drum | 12. | Rear planetary sun gear No.2 thrust bearing race No.2 |
| 4. | 1st and reverse brake snap ring No.2 | 13. | Rear planetary carrier thrust washer No.1 |
| 5. | One-way clutch assembly | 14. | Rear planetary gear assembly |
| 6. | Rear planetary sun gear No.1 | 15. | Rear planetary carrier thrust washer No.2 |
| 7. | Rear planetary sun gear No.1 thrust bearing |
 : |
Apply ATF. |
| 8. | Rear planetary sun gear No.1 thrust bearing race |
 : |
Do not reuse. |
| 9. | Rear planetary sun gear No.2 |
