Rear Planetary Gear Assembly and One-Way Clutch Assembly Disassembly and Reassembly
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
Disassembly

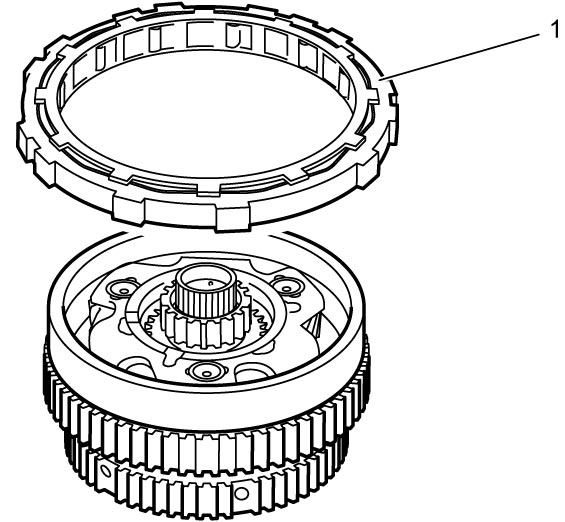

1)Remove one-way clutch assembly (1).

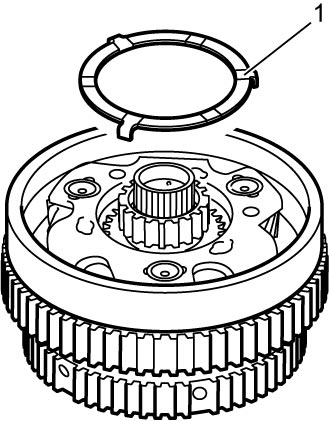

2)Remove rear planetary carrier thrust washer No.1 (1).

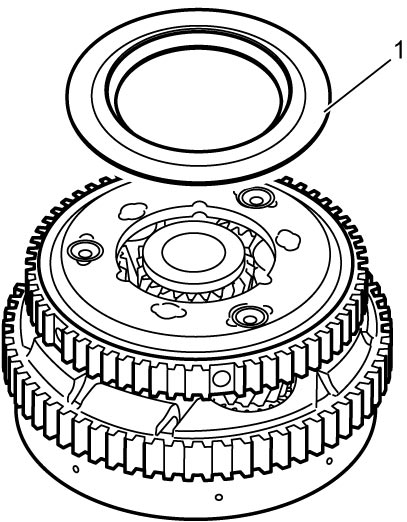

3)Remove rear planetary carrier thrust washer No.2 (1).

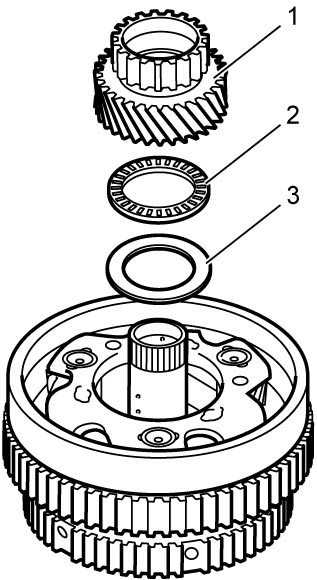

4)Remove rear planetary sun gear No.1 (1), rear planetary sun gear No.1 thrust bearing (2) and rear planetary sun gear No.1 thrust bearing race (3).

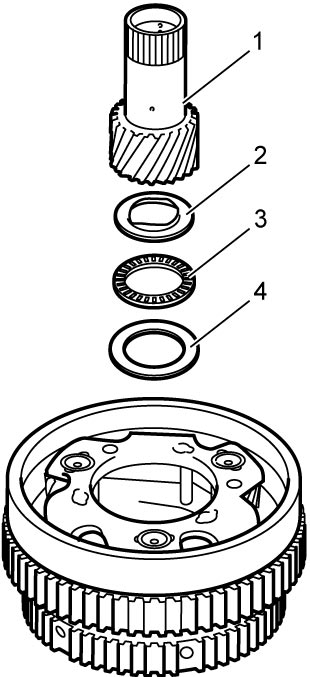

5)Remove rear planetary sun gear No.2 (1), rear planetary sun gear No.2 thrust bearing race No.1 (2), rear planetary sun gear No.2 thrust bearing (3) and Rear planetary sun gear No.2 thrust bearing race No.2 (4).
Reassembly
Reverse disassembly procedure noting the following point.
•Install thrust bearing, thrust bearing race and thrust washer in correct direction referring to “Thrust Bearing, Thrust Bearing Race and Thrust Washer” under A/T Assembly Components.
