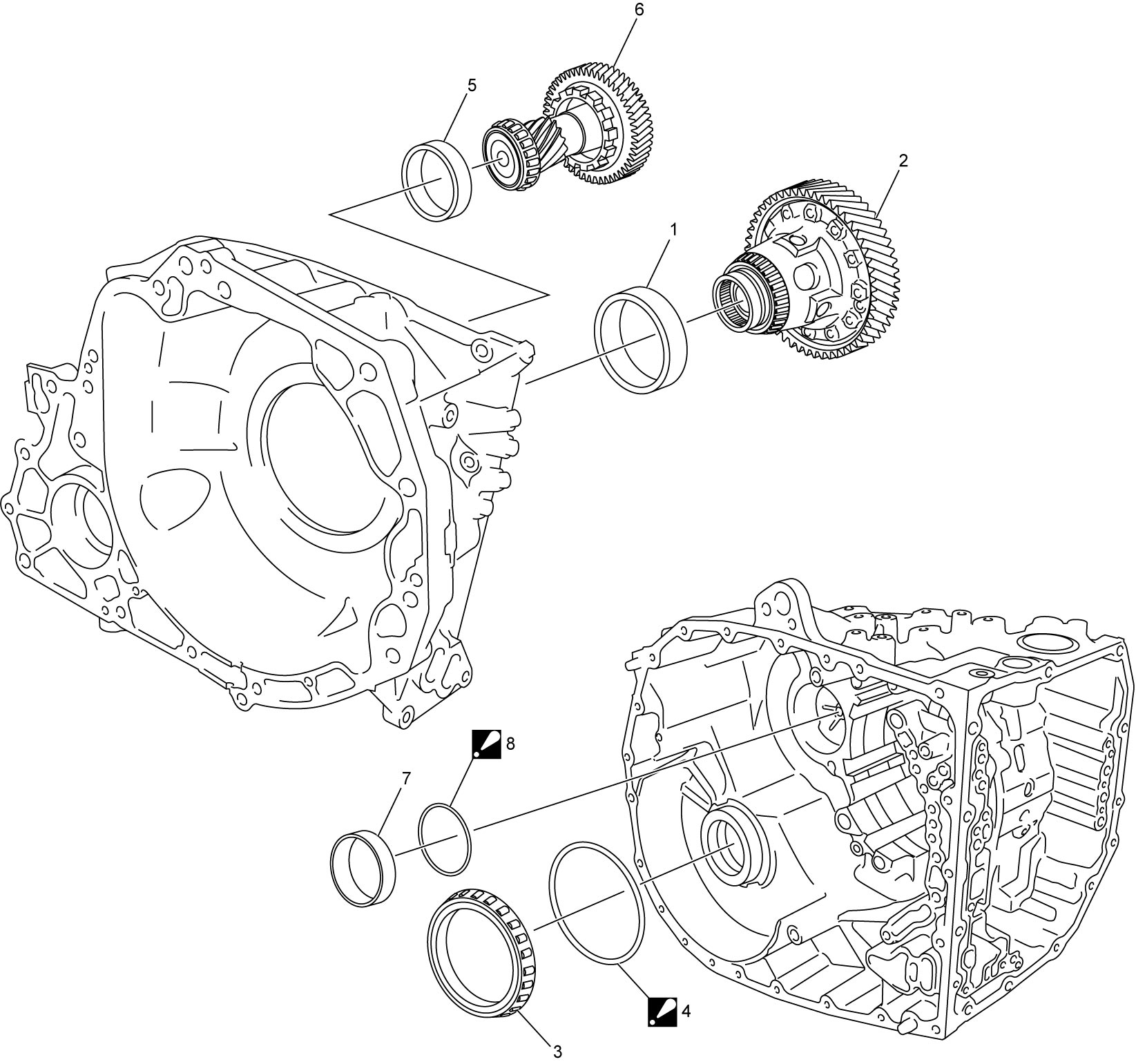

Differential and Pinion and Counter Driven Gear Assembly Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Differential side right taper roller bearing outer race | 5. | Pinion and counter driven gear right taper roller bearing outer race |
| 2. | Differential assembly | 6. | Pinion and counter driven gear assembly |
| 3. | Differential side left taper roller bearing | 7. | Pinion and counter driven gear left taper roller bearing outer race |
 4. |
Differential side left taper roller bearing shim : For differential side bearing preload, refer to A/T Assembly Inspection and Adjustment. |
8. |
Pinion and counter driven gear left taper roller bearing outer race shim : For pinion and counter driven gear bearing preload, refer to A/T Assembly Inspection and Adjustment. |
